Molex 0039016026 — Wire-to-Board Connectors

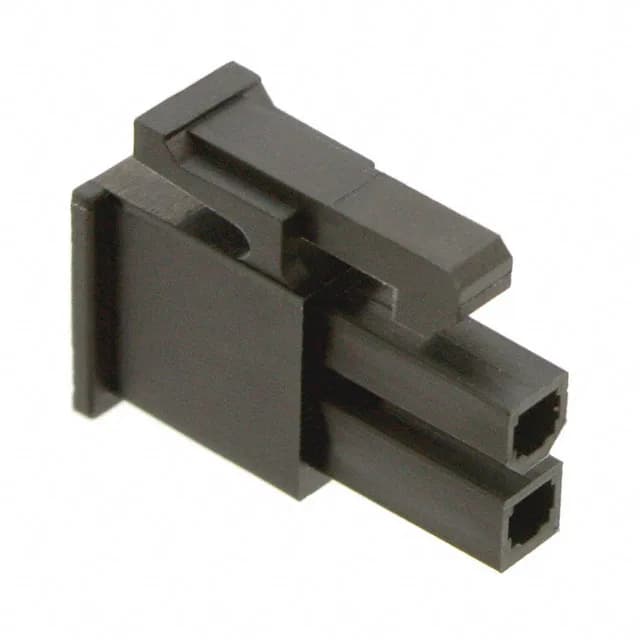

0039016026 Molex Mini-Fit Jr 5557 Receptacle Housing

MPN0039016026
Active

Molex Mini-Fit Jr 5557 series, 0039016026, 2-position dual-row receptacle housing, 4.20mm pitch, latch lock, black PA66, free-hanging, crimp termination, contacts not included.

$0.3800Ref. price · indicative, final on quote
Molex 0039016026 datasheet (PDF)
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

0039016026 specifications
ParameterValue
SeriesMini-Fit Jr 5557
TypeFemale Socket
MountingFree Hanging (In-Line)
Connector typeReceptacle
Fastening typeLatch Lock
ColorBlack
Insulation materialPolyamide (PA66), Nylon 6/6
NoteContacts Not Included
PackageBulk
Row spacing0.165\" (4.20mm)
Rows2
Contact terminationCrimp
Positions2

Product details

2-position, 2-row — the compact power pair

The 0039016026: This is a 2-position, 2-row receptacle housing from the Mini-Fit Jr 5557 series, with a 0.165" (4.20mm) row spacing. Black PA66 insulation material.

For a 2-position receptacle, that means two female socket contacts, typically Molex 5556 series (e.g., 55560029 for 18-24 AWG). The mating plug is a Mini-Fit Jr 5557 series male header, also 2-position, 2-row, 4.20mm pitch. Confirm the header's orientation (vertical or right-angle) and mounting style for your board layout.

Frequently asked questions

What is the mating plug for 0039016026?

The mating plug is a Molex Mini-Fit Jr 5557 series male header, 2-position, 2-row, 4.20mm pitch. Common order codes include 0039012026 (vertical) or 0039013026 (right-angle). Confirm the header's orientation and board-mount style for your application.
