Molex 0039291148

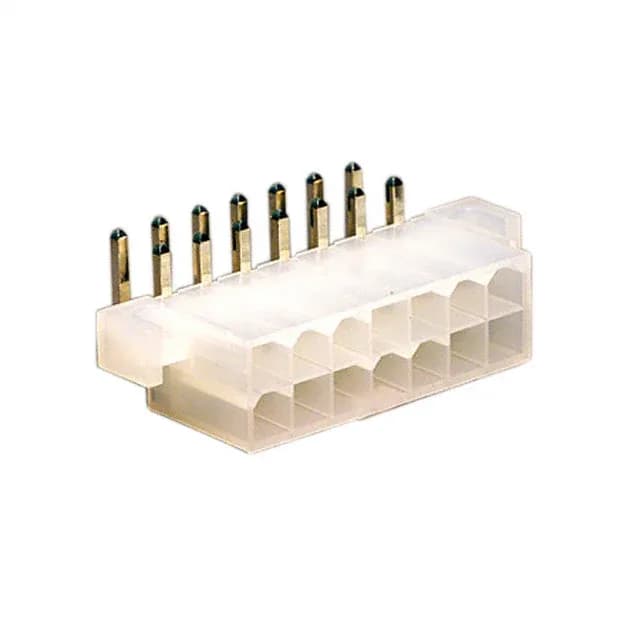

Molex 0039291148 Mini-Fit Jr 4.20mm Header, 14 Pos, R/A

MPN 0039291148
Active

Molex Mini-Fit Jr 5569 series, 0039291148, Board to Cable/Wire header, 14 circuits, 4.20mm pitch, 2 rows, right-angle through-hole, tin-plated contacts, shrouded with locking ramp.

$2.5500 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
RoHSROHS3 Compliant
IncotermsDAP / DDP Available
SeriesMini-Fit Jr 5569
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

0039291148 key specifications
ParameterValue
SeriesMini-Fit Jr 5569
TypeMale Pin
MountingThrough Hole, Right Angle
Connector typeHeader
Fastening typeLocking Ramp
Contact materialBrass
Insulation colorNatural
Insulation height0.378\" (9.60mm)
Insulation materialPolyamide (PA66), Nylon 6/6
Material flammability ratingUL94 V-2
StyleBoard to Cable/Wire
PackageBulk

All specifications

0039291148 additional specifications
ParameterValue
FeaturesMounting Flange
ShroudingShrouded - 4 Wall
TerminationSolder
ApplicationsGeneral Purpose, Industrial, Telecommunications
Contact shapeSquare
Rows2
Pitch0.165\" (4.20mm)
Positions14
Row spacing - mating0.165\" (4.20mm)
Contact finish - postTin
Contact length - post0.142\" (3.60mm)
Contact finish - matingTin
Contact finish thickness - post100.0µin (2.54µm)
Contact finish thickness - mating100.0µin (2.54µm)

Product details

Locking Ramp and Mounting Flange for Vibration Duty

The 0039291148: This keeps the connection secure under vibration in industrial and telecom gear. The mounting flange adds a secondary mechanical anchor to the PCB, reducing strain on the solder joints when the cable is flexed or pulled.

MPN
0039291148
