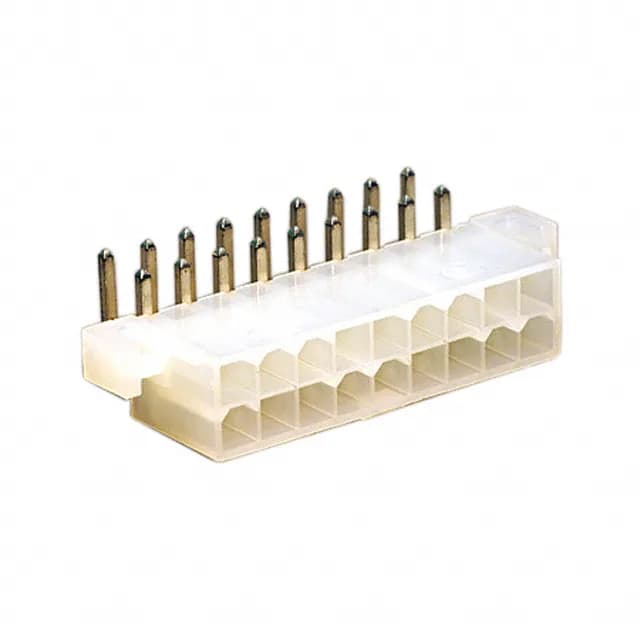

Molex 0039291188 Mini-Fit Jr Header, 18 Pos, 4.2mm

MPN0039291188
Active

Molex Mini-Fit Jr 5569 series header, 0039291188, 18 circuits, 4.20mm pitch, right-angle through-hole, shrouded 4-wall, tin-plated male pins, locking ramp, UL94 V-2, active.

$4.0900Ref. price · indicative, final on quote
Molex 0039291188 datasheet (PDF)
RoHSROHS3 Compliant
SeriesMini-Fit Jr 5569
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

0039291188 key specifications
ParameterValue
SeriesMini-Fit Jr 5569
TypeMale Pin
MountingThrough Hole, Right Angle
Connector typeHeader
Fastening typeLocking Ramp
Contact materialBrass
Insulation colorNatural
Insulation height0.378\" (9.60mm)
Insulation materialPolyamide (PA66), Nylon 6/6
Material flammability ratingUL94 V-2
StyleBoard to Cable/Wire
PackageBulk

All specifications

0039291188 additional specifications
ParameterValue
FeaturesMounting Flange
ShroudingShrouded - 4 Wall
TerminationSolder
ApplicationsGeneral Purpose, Industrial, Telecommunications
Contact shapeSquare
Rows2
Pitch0.165\" (4.20mm)
Positions18
Row spacing - mating0.165\" (4.20mm)
Contact finish - postTin
Contact length - post0.142\" (3.60mm)
Contact finish - matingTin
Contact finish thickness - post100.0µin (2.54µm)
Contact finish thickness - mating100.0µin (2.54µm)

Product details

Board-Edge Power Header for Harness Integration

18 Circuits, Dual-Row, Fully Loaded

The header carries 18 positions arranged in two rows with 0.165" (4.20mm) row spacing. Compared to a 16-circuit sibling in the same series, this 18-position version adds two more circuits for applications needing extra power or signal lines without increasing the board footprint beyond the dual-row layout.

Mounting and Mating Details

The mounting flange provides additional mechanical retention to the PCB. Mates with Mini-Fit Jr receptacle housings (series 5557) using the matching crimp terminals (series 5556).

Frequently asked questions

What is the pitch of Molex 0039291188?

The mating pitch is 0.165" (4.20mm), which is the Mini-Fit Jr series standard. Row spacing is also 0.165" (4.20mm).
