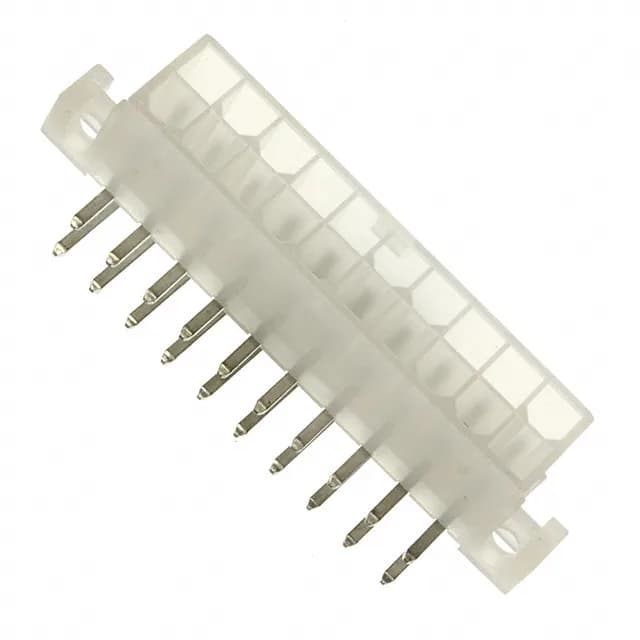

Molex Mini-Fit Jr 5569 series, 0039291208, 20-position dual-row header, 4.20mm pitch, right-angle through-hole, shrouded 4-wall with locking ramp, tin-plated contacts, natural PA66 housing.
| Parameter | Value |
|---|---|
| Series | Mini-Fit Jr 5569 |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Locking Ramp |
| Contact material | Brass |
| Insulation color | Natural |
| Insulation height | 0.378\" (9.60mm) |
| Insulation material | Polyamide (PA66), Nylon 6/6 |
| Material flammability rating | UL94 V-2 |
| Style | Board to Cable/Wire |
| Features | Mounting Flange |
| Parameter | Value |
|---|---|
| Package | Bulk |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose, Industrial, Telecommunications |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.165\" (4.20mm) |
| Positions | 20 |
| Row spacing - mating | 0.165\" (4.20mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.142\" (3.60mm) |
| Contact finish - mating | Tin |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 100.0µin (2.54µm) |
This header mates with Mini-Fit Jr receptacle housings using the matching crimp terminals. Through-hole solder termination — the 0.142-inch (3.60mm) post length provides adequate standoff for wave-solder fillet formation on standard 1.6mm PCBs.
The mounting flange provides additional PCB retention under cable strain.
