Molex 0039299084

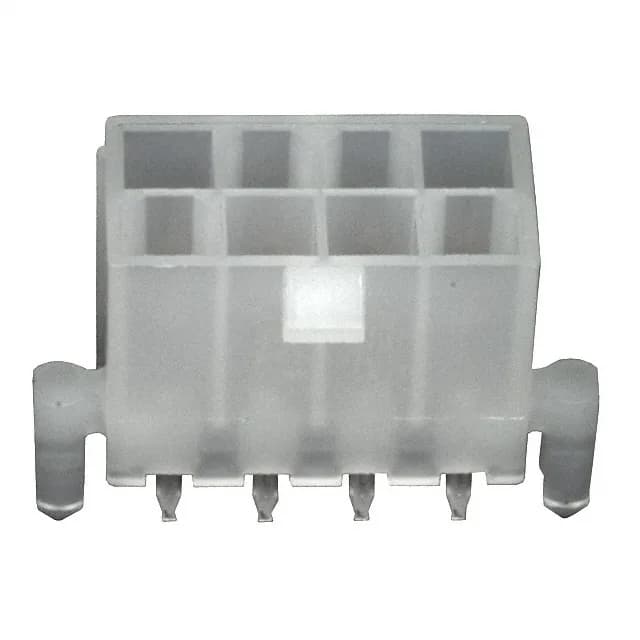

Molex 0039299084 Mini-Fit Jr Header 8 Pos 4.2mm Pitch

MPN 0039299084
Active

Molex Mini-Fit Jr 5566 series, 0039299084, vertical through-hole header, 8 circuits, dual-row, 4.20mm pitch, gold-plated mating pins, shrouded with locking ramp and board lock.

$3.8100 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
RoHSROHS3 Compliant
IncotermsDAP / DDP Available
SeriesMini-Fit Jr 5566
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

0039299084 key specifications
ParameterValue
SeriesMini-Fit Jr 5566
TypeMale Pin
MountingThrough Hole
Connector typeHeader
Fastening typeLocking Ramp
Contact materialBrass
Insulation colorNatural
Insulation height0.504\" (12.80mm)
Insulation materialPolyamide (PA66), Nylon 6/6
Material flammability ratingUL94 V-2
StyleBoard to Cable/Wire
PackageTray

All specifications

0039299084 additional specifications
ParameterValue
FeaturesBoard Lock
ShroudingShrouded - 4 Wall
TerminationSolder
ApplicationsGeneral Purpose, Industrial, Telecommunications
Contact shapeSquare
Rows2
Pitch0.165\" (4.20mm)
Positions8
Row spacing - mating0.165\" (4.20mm)
Contact finish - postTin
Contact length - post0.138\" (3.50mm)
Contact finish - matingGold
Contact finish thickness - post100.0µin (2.54µm)
Contact finish thickness - mating30.0µin (0.76µm)

Product details

Mates with any Mini-Fit Jr 5556 or 5557 receptacle housing that carries 8 circuits and accepts the 4.20mm pitch.

In a panel that gets cycled quarterly, that gold thickness supports well over a decade of service before the contact interface wears through to the base metal. Tin on the solder tails keeps the cost down where the connection is made once.
