Molex 0039299183

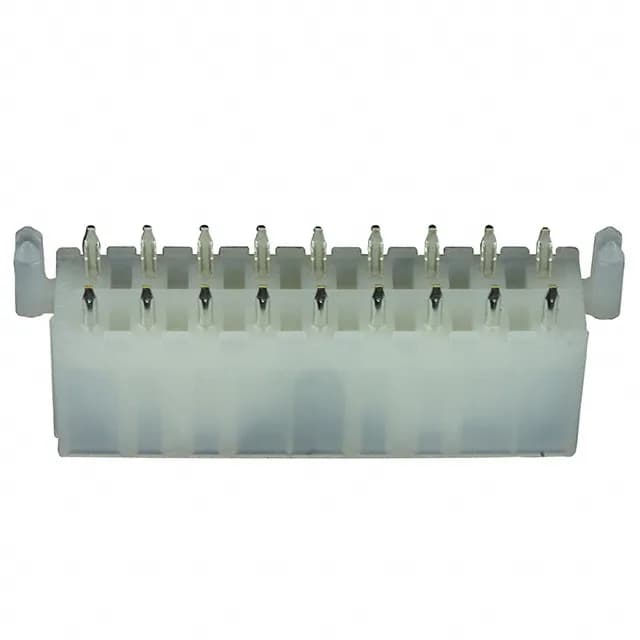

Molex 0039299183 Mini-Fit Jr 18-Pin Header 4.2mm Pitch

MPN 0039299183
Active

Molex Mini-Fit Jr 5566 series, 0039299183, Board to Cable/Wire header, 18 circuits, 4.20mm pitch, dual-row, through-hole, tin-plated male pins, shrouded with board lock.

$3.1100 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
RoHSROHS3 Compliant
IncotermsDAP / DDP Available
SeriesMini-Fit Jr 5566
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

0039299183 key specifications
ParameterValue
SeriesMini-Fit Jr 5566
TypeMale Pin
MountingThrough Hole
Connector typeHeader
Fastening typeLocking Ramp
Contact materialBrass
Insulation colorNatural
Insulation height0.504\" (12.80mm)
Insulation materialPolyamide (PA66), Nylon 6/6
Material flammability ratingUL94 V-2
StyleBoard to Cable/Wire
PackageTray

All specifications

0039299183 additional specifications
ParameterValue
FeaturesBoard Lock
ShroudingShrouded - 4 Wall
TerminationSolder
ApplicationsGeneral Purpose, Industrial, Telecommunications
Contact shapeSquare
Rows2
Pitch0.165\" (4.20mm)
Positions18
Row spacing - mating0.165\" (4.20mm)
Contact finish - postTin
Contact length - post0.138\" (3.50mm)
Contact finish - matingTin
Contact finish thickness - post35.0µin (0.90µm)
Contact finish thickness - mating35.4µin (0.90µm)

Product details

18-Position Power Header for Wire-to-Board Routing

The 0039299183: This is a Molex Mini-Fit Jr 5566 series header, 18 positions arranged in two rows at 4.20mm pitch — the standard spacing for medium-current wire-to-board interconnects in industrial and telecom gear.

Mechanical Retention in Vibration-Prone Installations

The insulation height of 0.504" (12.80mm) gives clearance for the locking mechanism and allows the receptacle to seat fully without interference from nearby components.

MPN
0039299183
