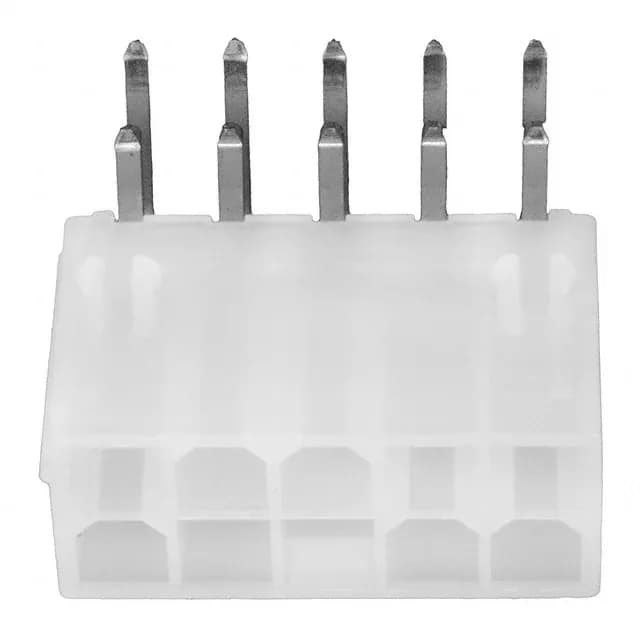

Molex Mini-Fit Jr 5569 series header, 10 circuits, 4.20mm pitch, right-angle through-hole, shrouded 4-wall, gold-plated mating contacts, board lock, ROHS3 compliant.
| Parameter | Value |
|---|---|
| Series | Mini-Fit Jr 5569 |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Locking Ramp |
| Contact material | Brass |
| Insulation color | Natural |
| Insulation height | 0.378\" (9.60mm) |
| Insulation material | Polyamide (PA66), Nylon 6/6 |
| Material flammability rating | UL94 V-2 |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Parameter | Value |
|---|---|
| Features | Board Lock |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose, Industrial, Telecommunications |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.165\" (4.20mm) |
| Positions | 10 |
| Row spacing - mating | 0.165\" (4.20mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.142\" (3.60mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
This header mates with Mini-Fit Jr receptacle housings using standard crimp terminals. The 4.20mm pitch and dual-row layout match the receptacle footprint exactly.
