Molex 0039301201

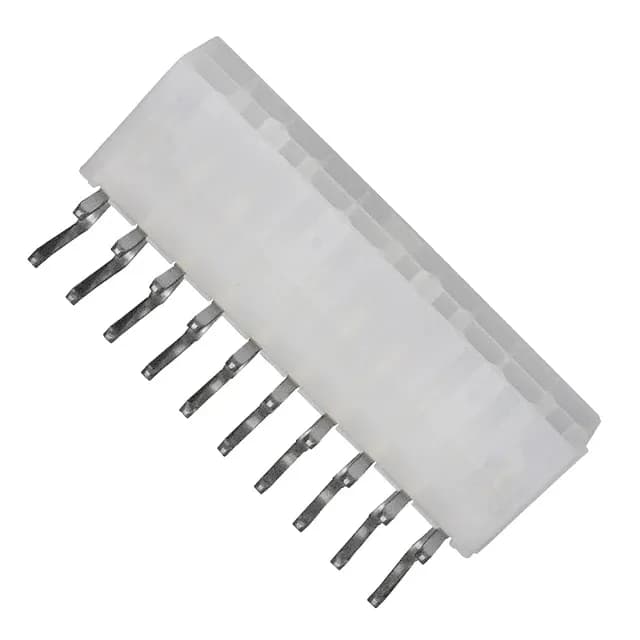

Molex 0039301201 Mini-Fit Jr Header, 20 Pos, 4.2mm, R/A

MPN 0039301201
Active

Molex Mini-Fit Jr 5569 series header, 0039301201, 20 circuits, 4.20mm pitch, right-angle through-hole, gold-plated male pins, shrouded with board lock, natural PA66 housing.

$9.2900 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
RoHSROHS3 Compliant
IncotermsDAP / DDP Available
SeriesMini-Fit Jr 5569
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

0039301201 key specifications
ParameterValue
SeriesMini-Fit Jr 5569
TypeMale Pin
MountingThrough Hole, Right Angle
Connector typeHeader
Fastening typeLocking Ramp
Contact materialBrass
Insulation colorNatural
Insulation height0.378\" (9.60mm)
Insulation materialPolyamide (PA66), Nylon 6/6
Material flammability ratingUL94 V-2
StyleBoard to Cable/Wire
PackageBulk

All specifications

0039301201 additional specifications
ParameterValue
FeaturesBoard Lock
ShroudingShrouded - 4 Wall
TerminationSolder
ApplicationsGeneral Purpose, Industrial, Telecommunications
Contact shapeSquare
Rows2
Pitch0.165\" (4.20mm)
Positions20
Row spacing - mating0.165\" (4.20mm)
Contact finish - postTin
Contact length - post0.142\" (3.60mm)
Contact finish - matingGold
Contact finish thickness - post100.0µin (2.54µm)
Contact finish thickness - mating30.0µin (0.76µm)

Product details

Board Lock Retention and Solder Termination

The 0039301201: This is especially useful in applications where the harness is frequently disconnected or subjected to vibration. Termination is solder — the through-hole tails (0.142" post length) are designed for standard PCB hole diameters.

ROHS3 compliant.

MPN
0039301201
