Molex 0039306247

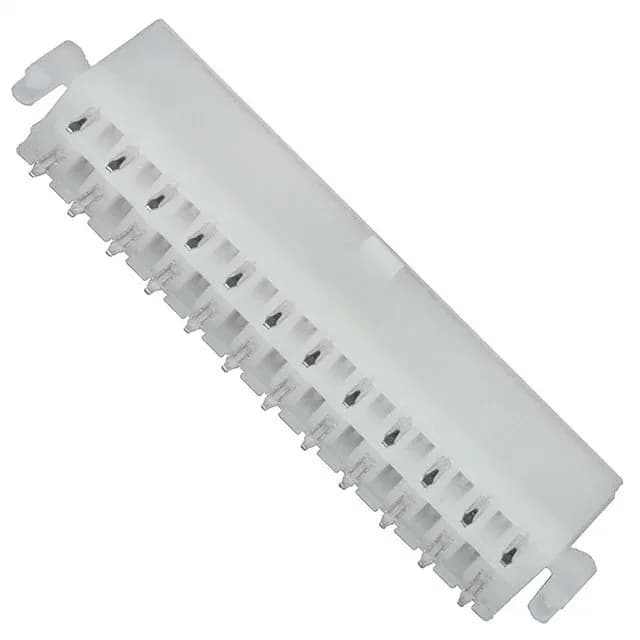

Molex 0039306247 Mini-Fit Jr 5566 Header 24 Pos 4.2mm

MPN 0039306247
Active

Molex Mini-Fit Jr 5566 series, 0039306247, vertical through-hole header, 24 circuits, 2 rows, 4.20mm pitch, shrouded 4-wall, tin-plated contacts, board lock, locking ramp, UL94 V-2, tray pack.

$3.9100 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
RoHSROHS3 Compliant
IncotermsDAP / DDP Available
SeriesMini-Fit Jr 5566
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

0039306247 key specifications
ParameterValue
SeriesMini-Fit Jr 5566
TypeMale Pin
MountingThrough Hole
Connector typeHeader
Fastening typeLocking Ramp
Contact materialBrass
Insulation colorNatural
Insulation height0.504\" (12.80mm)
Insulation materialPolyamide (PA66), Nylon 6/6
Material flammability ratingUL94 V-2
StyleBoard to Cable/Wire
PackageTray

All specifications

0039306247 additional specifications
ParameterValue
FeaturesBoard Lock
ShroudingShrouded - 4 Wall
TerminationSolder
ApplicationsGeneral Purpose, Industrial, Telecommunications
Contact shapeSquare
Rows2
Pitch0.165\" (4.20mm)
Positions24
Row spacing - mating0.165\" (4.20mm)
Contact finish - postTin
Contact length - post0.138\" (3.50mm)
Contact finish - matingTin
Contact finish thickness - post100.0µin (2.54µm)
Contact finish thickness - mating100.0µin (2.54µm)

Product details

24 Circuits at 4.20mm Pitch — Footprint and Fit

The 0039306247: The 24 positions, fully loaded across two rows, give you a dense but serviceable power interconnect. In a panel or enclosure where the harness gets tugged, those locks keep the solder joints from cracking.

Locking Ramp and Shroud — Vibration-Ready Mate

In an industrial cabinet with fans or a telecom rack with cooling blowers, that ramp keeps the pair mated — a half-turn loose is a dropout, but this isn't threaded; it's a positive lock that won't back off. No keying here, but the shroud alone reduces mis-mate risk on a production line.

Tin Plating — Cost-Effective for Moderate Duty

Tin is the workhorse for connectors that mate a few dozen times over their life — think a PSU harness that connects once at build and stays. For a field-service application cycled quarterly, you'd want gold; here, tin keeps the unit cost down.
