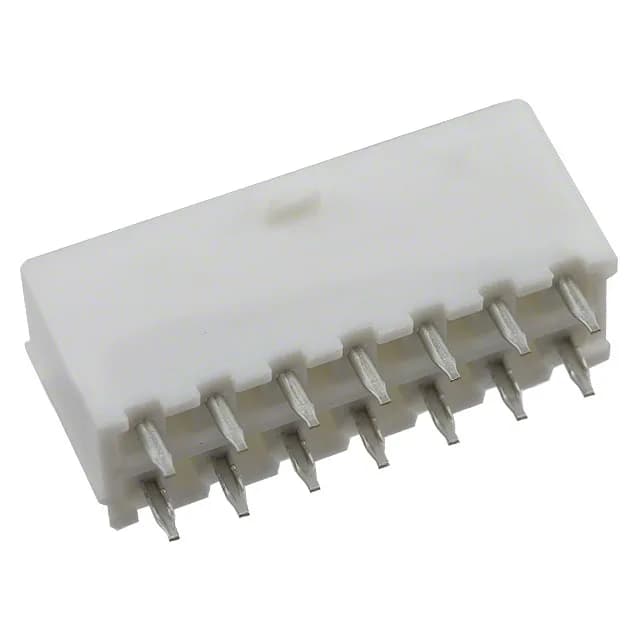

Molex Mini-Fit Jr 5566 header, order code 0039310148, 14 positions, dual row, 0.165" (4.20mm) pitch, gold-plated mating contacts (30.0µin), through-hole, solder termination, shrouded 4-wall with locking ramp.
| Parameter | Value |
|---|---|
| Series | Mini-Fit Jr 5566 |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Locking Ramp |
| Contact material | Brass |
| Insulation color | Natural |
| Insulation height | 0.504\" (12.80mm) |
| Insulation material | Polyamide (PA66), Nylon 6/6 |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Parameter | Value |
|---|---|
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose, Industrial, Telecommunications |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.165\" (4.20mm) |
| Positions | 14 |
| Row spacing - mating | 0.165\" (4.20mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.138\" (3.50mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 0039310148 is the 14-circuit member of Molex's Mini-Fit Jr 5566 header line, a board-to-cable/wire shrouded header with a 4-wall locking ramp. Gold-on-mating contacts (30.0µin) and tin-on-post (100.0µin) suit the header for repeated mating cycles in general-purpose, industrial, and telecommunications equipment.
RoHS and REACH compliance documentation is available from the manufacturer.
