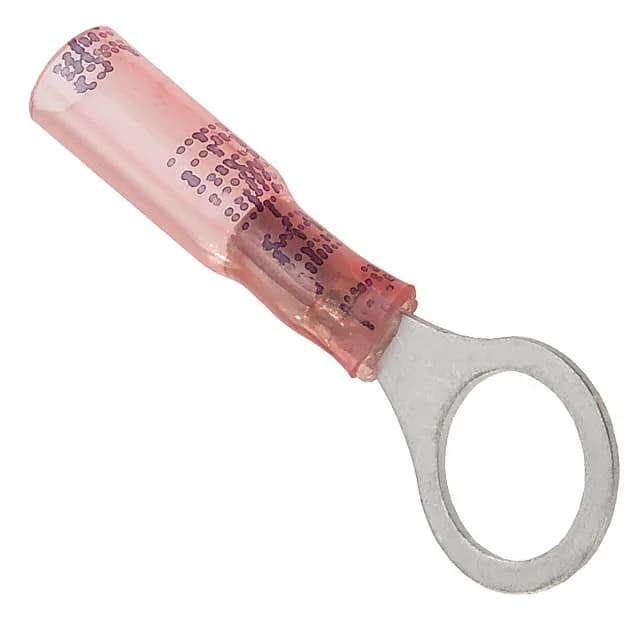

Molex 0191640005
MPN0191640005
Active
CONN RING CIRC 18-22AWG #3/8
$1.0800Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesPerma-Seal
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Perma-Seal |
| Mounting | Free Hanging (In-Line) |
| Terminal type | Circular |
| Wire gauge | 18-22 AWG |
| Color | Red |
| Contact material | Copper Alloy |
| Width - outer edges | 0.540\" (13.72mm) |
| Material - insulation | NiAc |
| Package | Bulk |
| Features | Serrated Termination |
| Thickness | 0.032\" (0.81mm) |
| Insulation | Insulated with Heat Shrink |
| Termination | Crimp |
| Stud (Tab size) | 3/8 Stud |
| Contact finish | Tin |
| Length - overall | 1.950\" (49.53mm) |
| Insulation diameter | 0.235\" (5.97mm) |
