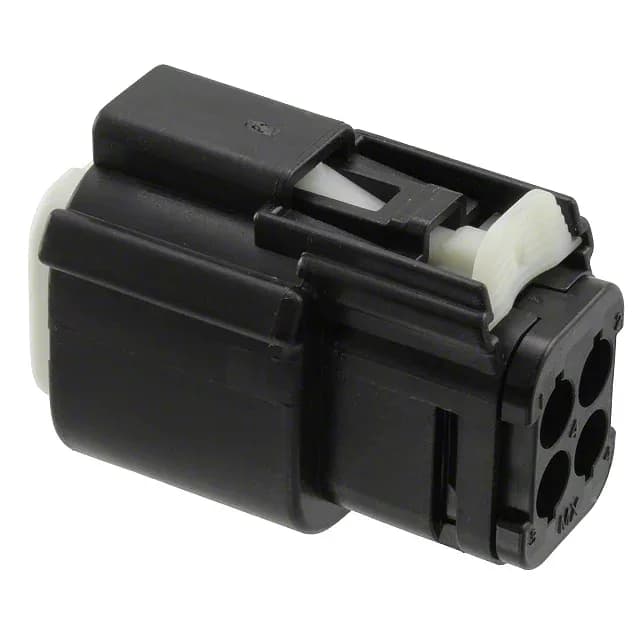

Molex 0194180004 — Connector Housings

Molex MX150L 0194180004

MPN0194180004
Active

Molex MX150L 19418 series, 0194180004, 4-position receptacle housing, 2 rows, 5.84mm pitch, 6.00mm row spacing, crimp termination, IP67, CPA, free hanging, -40°C to 120°C.

$4.3100Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesMX150L 19418
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

0194180004 specifications
ParameterValue
SeriesMX150L 19418
TypeFemale Socket
MountingFree Hanging (In-Line)
Connector typeReceptacle
Fastening typeLatch Holder
Operating temperature-40°C ~ 120°C
Insulation materialPolybutylene Terephthalate (PBT), Polyester
NoteContacts Not Included
Pitch0.230\" (5.84mm)
PackageBulk
FeaturesConnector Position Assurance (CPA), IP67
Row spacing0.236\" (6.00mm)
Rows2
Contact terminationCrimp
Positions4

Product details

Sealed 4-Position Housing for Harness Builds

The housing carries an IP67 rating and a Connector Position Assurance (CPA) feature, meaning the mated connection stays sealed and locked in environments where water spray, dust, or vibration are present — underhood automotive, off-road equipment, marine, and outdoor industrial controls are the natural fit.

Pitch, Row Spacing, and Sealing

The dual-row layout (2 rows, 4 positions total) keeps the connector compact while maintaining the creepage distance the IP67 seal requires. The latch holder fastening type, combined with the CPA, locks the plug and receptacle together so that engine vibration or harness movement does not work the connection loose.

Temperature Range and Materials

The insulator is polybutylene terephthalate (PBT) / polyester — a material choice that holds up to the temperature extremes and resists the chemicals and oils common in vehicle and industrial environments.

Frequently asked questions

Where can I buy Molex 0194180004?

Submit a request for current pricing and availability — the supply posture is confirmed at quote time.

Does Molex 0194180004 include contacts?

No, the contacts are not included. This is a receptacle housing only — it accepts female socket crimp terminals that must be ordered separately as a distinct BOM line.

Is Molex 0194180004 waterproof?

Yes, the housing carries an IP67 rating, meaning it is sealed against dust ingress and temporary immersion in water when mated with the corresponding plug and properly terminated. The CPA feature ensures the seal is maintained under vibration.

What is the pitch of Molex 0194180004?

These dimensions are wider than typical signal connectors, providing room for the wire seals and insulation required in sealed power applications.
