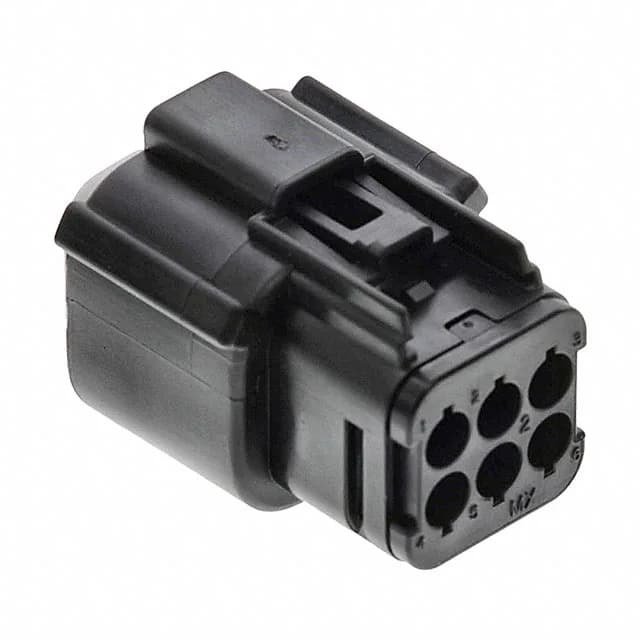

Molex MX150L 19418 series, 0194180021 receptacle, 6 circuits, 2 rows, 0.230" (5.84mm) pitch, IP67, crimp termination, latch holder, free hanging.
| Parameter | Value |
|---|---|
| Series | MX150L 19418 |
| Type | Female Socket |
| Mounting | Free Hanging (In-Line) |
| Connector type | Receptacle |
| Fastening type | Latch Holder |
| Operating temperature | -40°C ~ 120°C |
| Insulation material | Polybutylene Terephthalate (PBT), Polyester |
| Note | Contacts Not Included |
| Pitch | 0.230\" (5.84mm) |
| Features | IP67 |
| Package | Tray |
| Row spacing | 0.236\" (6.00mm) |
| Rows | 2 |
| Contact termination | Crimp |
| Positions | 6 |
The Molex MX150L 19418 series 0194180021 is a 6-circuit, 2-row receptacle housing for sealed wire-to-wire interconnects. It uses a 0.230" (5.84mm) pitch and a 0.236" (6.00mm) row spacing, with a latch holder for vibration-resistant mating. This makes it a standard choice for underhood automotive harnesses, outdoor power equipment, and industrial control cabinets where moisture and debris are a concern.
Contacts are not included.
No. The spec explicitly states contacts are not included. You must order the matching MX150L female crimp terminals separately.
Yes. The housing carries an IP67 rating, meaning it seals against dust and temporary immersion when mated with the correct plug half.
