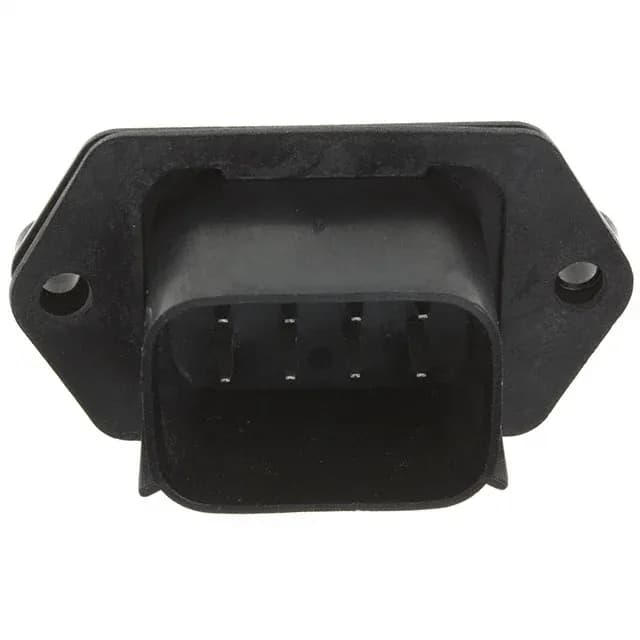

Molex MX150L 19428 series, 0194280013, board-to-cable/wire header, 8 circuits, 2 rows, 0.230" (5.84 mm) pitch, shrouded with locking ramp, IP67, tin-plated contacts, solder termination, panel mount / through hole, black PBT housing UL94 V-0.
| Parameter | Value |
|---|---|
| Series | MX150L 19428 |
| Type | Male Blade |
| Mounting | Panel Mount, Through Hole |
| Connector type | Header |
| Fastening type | Locking Ramp |
| IP rating | IP67 - Dust Tight, Waterproof |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 1.094\" (27.80mm) |
| Insulation material | Polybutylene Terephthalate (PBT), Glass Filled |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Parameter | Value |
|---|---|
| Package | Tray |
| Features | Board Guide, Mounting Flange |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive, General Purpose, Industrial |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.230\" (5.84mm) |
| Positions | 8 |
| Row spacing - mating | 0.236\" (6.00mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.130\" (3.30mm) |
| Contact finish - mating | Tin |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 100.0µin (2.54µm) |
The 0194280013: The header is rated IP67 when mated, meaning the connector withstands temporary water immersion and dust ingress — suitable for under-hood automotive and washdown industrial environments. The square male blades accept the matching MX150L receptacle terminals.
The header is supplied in tray packaging.
The mating pitch is 0.230" (5.84 mm). Row spacing is 0.236" (6.00 mm).
It mates with a MX150L series receptacle housing that accepts the matching male blade terminals. The locking ramp and 4-wall shroud ensure a polarized, vibration-resistant connection.
Yes, the MX150L series is listed for Automotive, General Purpose, and Industrial use. The IP67 rating and locking ramp make it suitable for under-hood and exposed locations.
