Molex 0307001244

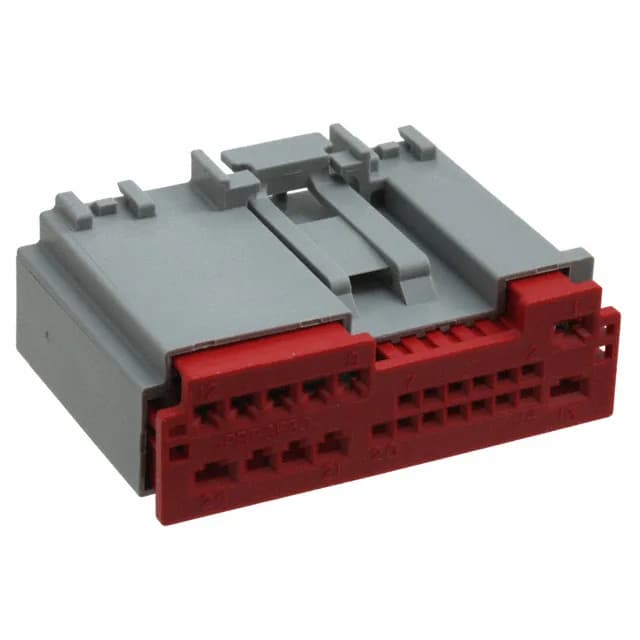

Molex 0307001244 H-DAC 64 Receptacle, 24 Circuit, Gray

MPN 0307001244
Active

Molex H-DAC 64 30700 series receptacle, 24-circuit dual-row, gray, free-hanging, crimp termination, latch holder fastening, TPA feature, -40°C to 100°C.

$2.3100 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

0307001244 specifications
ParameterValue
SeriesH-DAC 64 30700
TypeFemale Socket
MountingFree Hanging (In-Line)
Connector typeReceptacle
Fastening typeLatch Holder
Operating temperature-40°C ~ 100°C
ColorGray
Insulation materialSyndiotactic Polystyrene (SPS), Glass Filled
FeaturesTerminal Position Lock (TPA)
PackageBulk
Rows2
Contact terminationCrimp
Positions24

Product details

24-Circuit Dual-Row Receptacle for Harness Builds

It carries two rows of female socket contacts, terminated by crimp, and uses a latch holder fastening system for a secure mate.

Terminal Position Lock (TPA) and Assembly Confidence

A Terminal Position Lock (TPA) is integrated into the housing — this secondary lock slides over the fully seated crimp terminals and prevents back-out under vibration or wire pull. For a harness builder, the TPA means each contact position can be visually confirmed as locked before the connector is mated, reducing the risk of intermittent open circuits in the field.

The 0307001244 carries an Active product status.
