Molex 0310681040 — Connector Housings

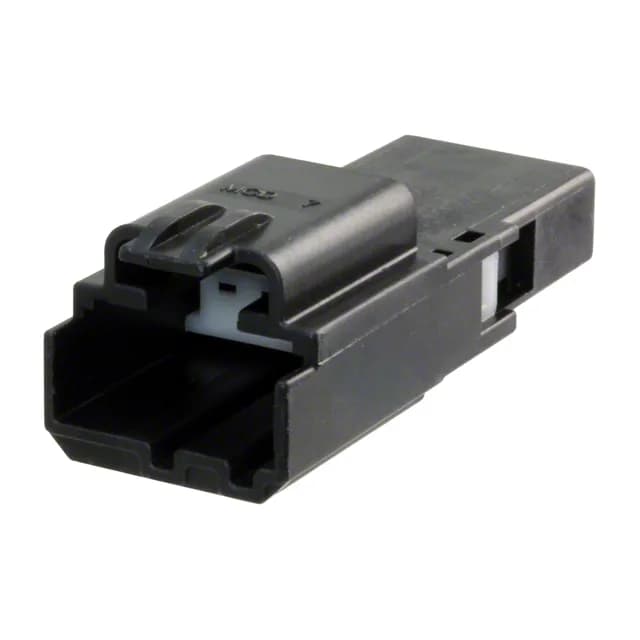

Molex H-DAC 64 0310681040 Header Housing, 4 Pos, 2.54mm

MPN0310681040
Active

Molex H-DAC 64 31068 series, 0310681040, 4-position single-row header housing, 0.100" (2.54mm) pitch, free-hanging in-line, crimp termination, black SPS housing, TPA latch, bagged.

$1.1600Ref. price · indicative, final on quote
Molex 0310681040 datasheet (PDF)
RoHSROHS3 Compliant
SeriesH-DAC 64 31068
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

0310681040 specifications
ParameterValue
SeriesH-DAC 64 31068
TypeMale Pin
MountingFree Hanging (In-Line)
Connector typeHeader
Fastening typeLatch Holder
Operating temperature-40°C ~ 100°C
ColorBlack
Insulation materialSyndiotactic Polystyrene (SPS), Glass Filled
NoteContacts Not Included
Pitch0.100\" (2.54mm)
PackageBag
FeaturesTerminal Position Lock (TPA)
Rows1
Contact terminationCrimp
Positions4

Product details

4-Position Header Housing for H-DAC 64 Harnesses

The Molex 0310681040 is a 4-circuit, single-row header housing from the H-DAC 64 31068 series. That TPA feature is the main reason to reach for this housing over a plain latch version in a harness that sees movement.

Mating and Contact Fit

The 0310681040 mates with the matching H-DAC 64 receptacle housing of the same 4-circuit count and 2.54mm pitch — the female half that accepts the female crimp terminals. Order the terminals separately — they are not included in the bag.

Frequently asked questions

What contacts fit Molex 0310681040?

The housing does not include contacts, so buyers must specify compatible crimp terminals for their wire assembly.

What is the mating connector for 0310681040?

Design engineers need to know the matching header part to ensure proper connector system fit.

Is 0310681040 obsolete?

Even though active, buyers always confirm lifecycle before committing to a design or order.

Where can I buy 0310681040?

Sourcing and transactional buyers need direct links to authorized distributors to place an order.

What is the price of 0310681040?

Cost is a primary decision factor for BOM filling and budget approval.

Does 0310681040 have terminal position lock?

TPA is a critical feature for reliability in high-vibration applications, so buyers verify it early.
