10-position Stac64 housing with CPA

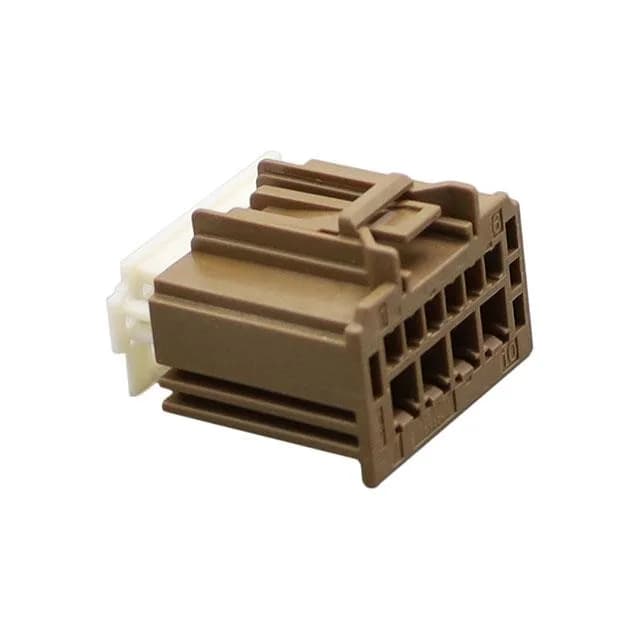

The 0313721200: This is the receptacle half of a 10-circuit, 2-row Stac64 31372 wire-to-board interconnect. The housing accepts female crimp terminals and mates with a 10-position header (sold separately). The Connector Position Assurance (CPA) feature locks the connector pair only when fully seated, preventing partial engagement that can cause intermittent contact in high-vibration assemblies.
Wiring and termination fit
Free-hanging (in-line) mounting with a latch holder means this receptacle snaps into the mating header without panel hardware — common for harness-to-board drops in engine bays or control cabinets. Row spacing is 0.248" (6.30 mm), which sets the header footprint pitch. Color brown aids visual identification on the assembly line — a deliberate choice for wire harnesses where multiple connector colors reduce mis-mating.
ROHS3 compliant. No known direct replacement or cross-reference; the 10-position 2-row configuration is specific to the Stac64 31372 series.
