Molex 0334710406

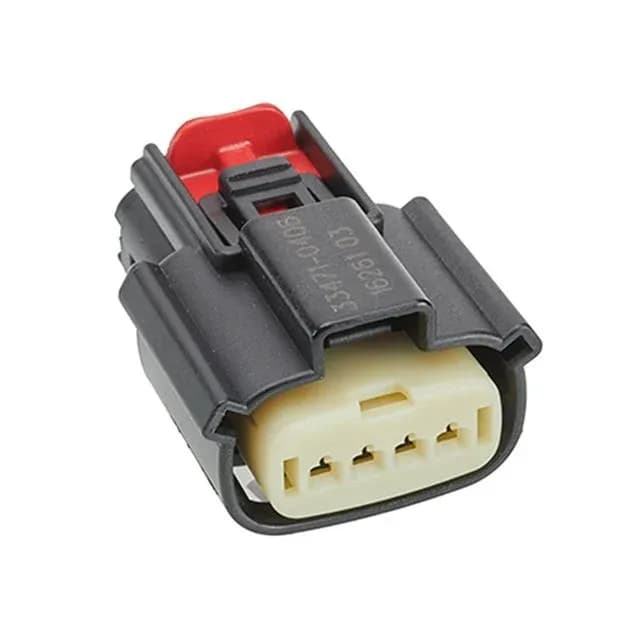

Molex MX150 0334710406 Receptacle Housing, 4 Pos, 3.50mm

MPN 0334710406
Active

Molex MX150 33471 series, 0334710406, 4-position receptacle housing, 3.50mm pitch, 1 row, sealed, black, free-hanging, crimp termination, bulk.

$3.0200 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
RoHSROHS3 Compliant
IncotermsDAP / DDP Available
SeriesMX150 33471
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

0334710406 specifications
ParameterValue
SeriesMX150 33471
TypeFemale Socket
MountingFree Hanging (In-Line)
Connector typeReceptacle
Fastening typeLatch Holder
Operating temperature-40°C ~ 125°C
ColorBlack
Insulation materialPolyester
NoteContacts Not Included
Pitch0.138\" (3.50mm)
PackageBulk
FeaturesSealed
Rows1
Contact terminationCrimp
Positions4

Product details

The Molex 0334710406 is a 4-position receptacle housing from the MX150 33471 series, built for sealed wire-to-board or wire-to-wire interconnects in automotive and industrial environments. It uses a 3.50 mm pitch and a single-row layout, with a latch holder for secure mating.

Wiring and Termination

This is a crimp-and-poke housing — the female socket contacts are ordered separately and must be crimped onto the wire before insertion. The housing itself is free-hanging (in-line), so it terminates a cable assembly rather than mounting to a board. The black polyester insulation material and the sealed construction mean the mated pair resists moisture and debris ingress, which is the main reason to pick this MX150 variant over an unsealed alternative.

MPN
0334710406
