Molex 0334713340

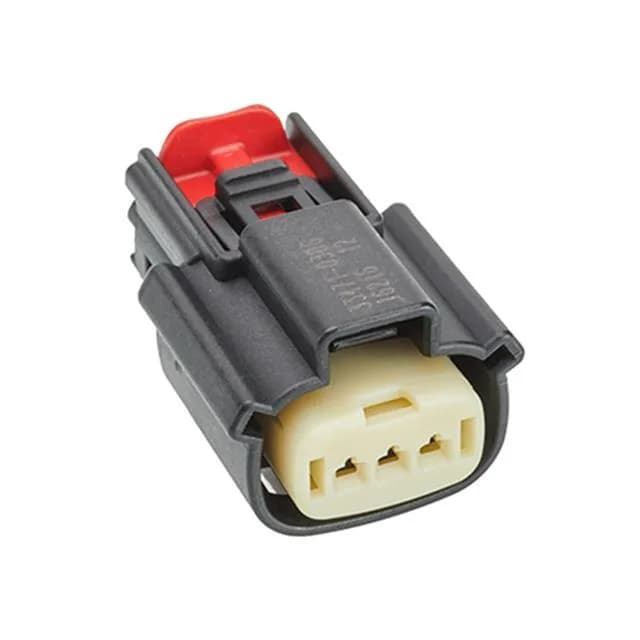

Molex 0334713340 MX150 Receptacle Housing, 3 Pos

MPN 0334713340
Active

Molex MX150 33471 series, receptacle housing, 3 circuits, 1 row, 0.138" (3.50mm) pitch, female socket contacts, free-hanging (in-line), gray, crimp termination, -40°C ~ 125°C, ROHS3 compliant.

$1.8100 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
RoHSROHS3 Compliant
IncotermsDAP / DDP Available
SeriesMX150 33471
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

0334713340 specifications
ParameterValue
SeriesMX150 33471
TypeFemale Socket
MountingFree Hanging (In-Line)
Connector typeReceptacle
Fastening typeLatch Holder
Operating temperature-40°C ~ 125°C
ColorGray
Insulation materialSyndiotactic Polystyrene (SPS), Glass Filled
Pitch0.138\" (3.50mm)
PackageBulk
Rows1
Contact terminationCrimp
Positions3

Product details

3.50mm pitch, 3-circuit receptacle — what it mates with

The 0334713340: The 0.138" (3.50mm) pitch is the first dimension to confirm against your PCB layout — it's the standard MX150 wire-to-board spacing.

Temperature range and material choice

The glass-filled syndiotactic polystyrene (SPS) insulation holds its shape at the high end and stays tough in cold.
