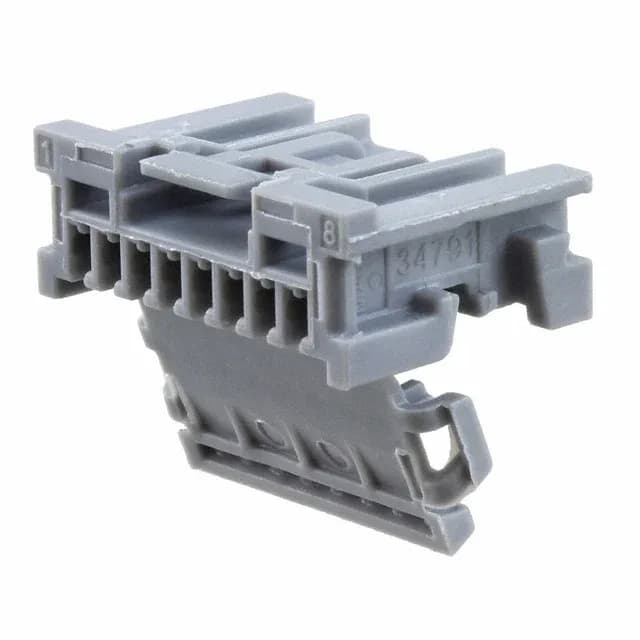

Molex Mini50 34791 series receptacle housing, 0347910081, 8 positions, 2.00mm pitch, 1 row, free hanging, crimp termination, gray PBT, latch holder, -40°C to 105°C.
| Parameter | Value |
|---|---|
| Series | Mini50 34791 |
| Type | Female Socket |
| Mounting | Free Hanging (In-Line) |
| Connector type | Receptacle |
| Fastening type | Latch Holder |
| Operating temperature | -40°C ~ 105°C |
| Color | Gray |
| Insulation material | Polybutylene Terephthalate (PBT) |
| Note | Contacts Not Included |
| Pitch | 0.079\" (2.00mm) |
| Package | Bulk |
| Rows | 1 |
| Contact termination | Crimp |
| Positions | 8 |
The Molex 0347910081 is an 8-circuit receptacle housing from the Mini50 34791 series, designed for wire-to-wire or wire-to-board harness applications where space is tight.
The Mini50 34791 series uses a specific terminal — the Molex 34791-0xxx crimp socket — that must be ordered as a separate line item.
Determines compatibility with headers and PCB layout.
Clarifies that contacts must be ordered separately to avoid assembly delays.
Ensures correct contact selection for wire gauge and current requirements.
Identifies authorized distributors for pricing and stock availability.
Affects long-term availability and sourcing strategy; part is currently active.
Helps choose the correct position count for the design.
