Molex 0347915141 — Connector Housings

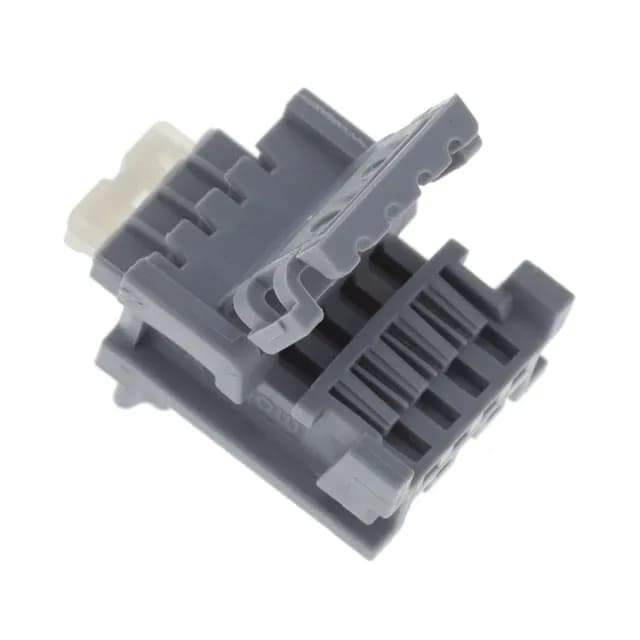

Molex Mini50 0347915141 Receptacle Housing, 4 Pos, 2.00mm

MPN0347915141
Active

Molex Mini50 34791 series, 0347915141, receptacle housing, 4 positions, 2.00mm pitch, single row, gray, crimp termination, free-hanging, with CPA latch.

$0.8900Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesMini50 34791
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

0347915141 specifications
ParameterValue
SeriesMini50 34791
TypeFemale Socket
MountingFree Hanging (In-Line)
Connector typeReceptacle
Fastening typeLatch Holder
Operating temperature-40°C ~ 105°C
ColorGray
Insulation materialPolybutylene Terephthalate (PBT)
NoteContacts Not Included
Pitch0.079\" (2.00mm)
PackageBulk
FeaturesConnector Position Assurance (CPA)
Rows1
Contact terminationCrimp
Positions4

Product details

The free-hanging (in-line) mount and latch holder fastening make it a straight pull-to-seat assembly, typical for branch circuits in a vehicle body harness or a sensor pigtail.

The CPA latch is the secondary lock: after the primary latch hooks, the CPA slides over it and holds it closed. In a vehicle door or engine bay harness, this prevents the connector from backing off when the harness is flexed during installation or service. The single-row 4-position layout keeps the connector body small — about the width of a finger — so it fits into a junction box or a tight cavity behind a headlamp.

Frequently asked questions

What contacts fit 0347915141 receptacle housing?

This housing accepts female socket crimp terminals from the Mini50 34791 terminal family. The contacts are not included with the housing — order them as a separate BOM line item.
