Molex 0387206304

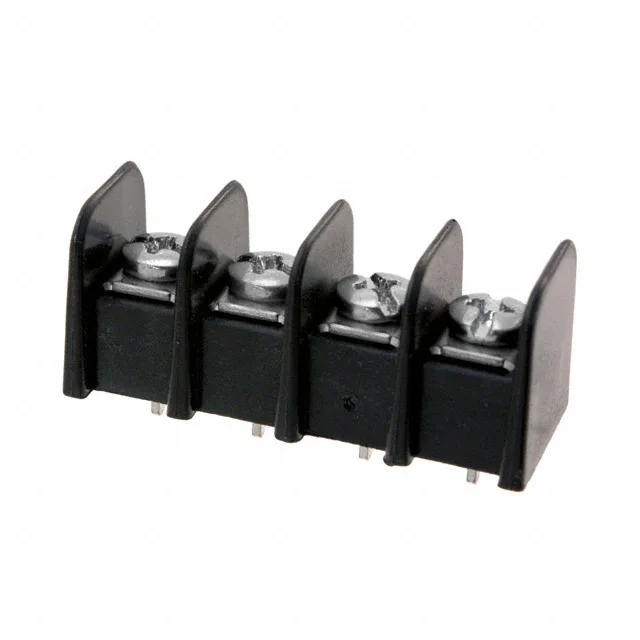

Molex Beau 38720 0387206304 Barrier Block, 4 Circuits, 15A

MPN 0387206304
Active

Molex Beau 38720 series barrier block, 0387206304, 4 circuits, 0.375" (9.53mm) pitch, 1 row, 15A, 300V, through hole, screw top termination, PC pin bottom, black thermoplastic housing, UL94 V-0.

$4.9900 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

0387206304 key specifications
ParameterValue
SeriesBeau 38720
Barrier type2 Wall (Dual)
MountingThrough Hole
Terminal block typeBarrier Block
Voltage rating300V
Current rating15A
Wire gauge14-22 AWG
Terminal screw finishZinc, Clear Chromate
Number of wire entries4
Terminal screw materialSteel
Operating temperature-40°C ~ 100°C
ColorBlack

All specifications

0387206304 additional specifications
ParameterValue
Material - insulationThermoplastic
Material flammability ratingUL94 V-0
Pitch0.375\" (9.53mm)
PackageBulk
ManufacturerMolex
Rows1
Top terminationScrews
Bottom terminationPC Pin
Number of circuits4

Product details

Barrier Block for Panel Wiring — 4 Circuits, Screw Termination

The Molex 0387206304 is a 4-circuit barrier block from the Beau 38720 series, a dual-wall (2 Wall) design that isolates adjacent terminals to prevent accidental shorting between wires. It uses a screw clamp on top to secure 14-22 AWG wire, with a PC pin bottom termination for through-hole soldering to a PCB. The 0.375" (9.53mm) pitch gives generous spacing between circuits for the 300V rating, and the 15A per-circuit current is sized for power distribution in control panels and appliance wiring — not signal-level duty.

Wiring and Termination — Screw Clamp, PC Pin

The single-row layout with 4 wire entries matches the 4 circuits — one wire per position. The dual-wall barrier reduces the chance of a stray strand bridging adjacent terminals during wiring.
