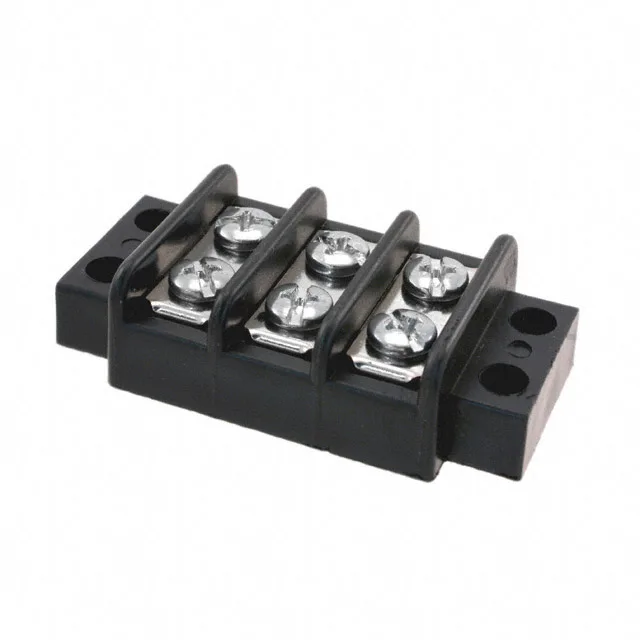

0387800103 — Molex product photo

Molex Beau 38780 0387800103 Barrier Block, 3 Circuits, 15A

MPN0387800103
Active

Molex Beau 38780 0387800103 barrier terminal block, 3 circuits, 0.438" (11.12 mm) pitch, 15 A, 300 V, dual-row, panel mount with flange, screw termination, UL94 V-0, black thermoplastic.

$5.5000Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.

Specifications

0387800103 Technical Specifications
ParameterValue
SeriesBeau 38780
Barrier type2 Wall (Dual)
Mounting typeChassis, Panel
Terminal block typeBarrier Block
Voltage rating300V
Current rating15A
Wire gauge14-22 AWG
Terminal screw finishZinc, Clear Chromate
Number of wire entries6
Terminal screw materialSteel
ColorBlack
Material - insulationThermoplastic
Material flammability ratingUL94 V-0
Pitch0.438\" (11.12mm)
FeaturesFlange
PackageBulk
ManufacturerMolex
Rows2
Top terminationScrews
Bottom terminationClosed
Number of circuits3

Product details

The Molex 0387800103 is a 3-circuit barrier terminal block from the Beau 38780 series, built for panel-mount power distribution where screw-clamp reliability and a positive mechanical anchor matter. The 0.438" (11.12 mm) pitch between terminals gives generous creepage for the 300 V rating and leaves room for two rows of wire entries — each circuit accepts two wires, one per row, so you can daisy-chain or common-bus without a separate jumper. The dual-wall barrier (2 Wall) between terminals prevents accidental shorting from a stray strand or tool blade, which is the kind of detail that saves a rework call on a live panel.

The steel terminal screws with zinc clear chromate finish resist corrosion in industrial cabinet air, and the closed bottom means no exposed live metal on the underside of the block — a safety feature when the block is mounted directly to a metal panel.

Panel-mount with the integral flange — two screws through the flange holes anchor the block to the chassis or enclosure wall, taking the mechanical strain off the wire terminations. Top termination is screw-clamp: strip the wire, insert into the entry, tighten the screw. The bottom is closed, so there is no through-hole solder tail or PCB footprint to design around — this is a pure panel-wiring component.

Frequently asked questions

What is the pitch of the Molex 0387800103?

The pitch between terminals is 0.438" (11.12 mm), which is wide enough for the 300 V creepage distance and for two rows of wire entries per circuit.

How many circuits does the 0387800103 have?

It has 3 circuits, each with two wire entries (one per row), for a total of 6 wire positions.
