Molex 0395000005 — Header Plugs & Sockets

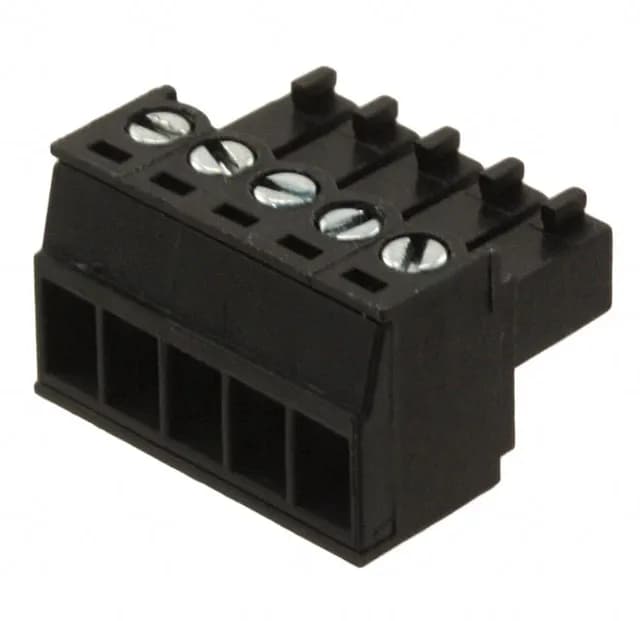

Molex 0395000005 – Eurostyle ESE 39500 5-Position Plug

MPN0395000005
Active

Molex Eurostyle ESE 39500, Plug Female Sockets, 5 positions, 0.138" (3.50mm) pitch, Free Hanging (In-Line), Screw - Rising Cage Clamp, 8 A UL, 300 V UL, UL94 V-0, Black, Bulk

$2.2000Ref. price · indicative, final on quote
Molex 0395000005 datasheet (PDF)
RoHSROHS3 Compliant
SeriesEurostyle ESE 39500
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

0395000005 key specifications
ParameterValue
TypePlug, Female Sockets
SeriesEurostyle ESE 39500
MountingFree Hanging (In-Line)
Voltage - UL300 V
Current - UL8 A
Plug wire entry180°
Wire strip length6.5mm
Wire gauge or range - AWG16-30 AWG
Operating temperature-40°C ~ 115°C
ColorBlack
Contact materialPhosphor Bronze
Housing materialPolyamide (PA66), Nylon 6/6

All specifications

0395000005 additional specifications
ParameterValue
Insulation height0.440\" (11.18mm)
Material flammability ratingUL94 V-0
Pitch0.138\" (3.50mm)
PackageBulk
Torque - screw0.23 Nm (2.0 Lb-In)
Number of levels1
Termination styleScrew - Rising Cage Clamp
Positions5
Positions per level5
Contact mating finishTin

Product details

5-Position Screw-Clamp Plug for Eurostyle 3.50mm Headers

The 0395000005: The black color is standard for the series.

Wire Range and Termination Details

Accepts 16-30 AWG solid or stranded wire. The rising cage clamp pushes the wire against a phosphor bronze current bar – the contact mating finish is tin, which is adequate for moderate-cycle industrial applications. The plug entry is 180° (straight), so the wire exits in line with the connector axis.

RoHS3 compliant. The base product number is 039500, which covers the 5-position variant in the 39500 series. Bulk packaging (tray or bag) is standard.

Frequently asked questions

Where can I buy Molex 0395000005?

We source the 0395000005 through our distribution network. Submit an RFQ for current pricing and availability – we confirm lead time at quote against your requested quantity.

What is the pitch of 0395000005?

0.138" (3.50mm) pitch. This matches the standard Eurostyle 3.50mm PCB headers – confirm your header's pin spacing matches before ordering.

What wire gauge does 0395000005 accept?

16-30 AWG solid or stranded wire. The screw rising cage clamp grips the conductor directly; strip 6.5mm of insulation before insertion.

Is 0395000005 RoHS compliant?

Yes – RoHS3 compliant per the manufacturer's declaration.
