Sizing the wire clamp and torque for a reliable termination

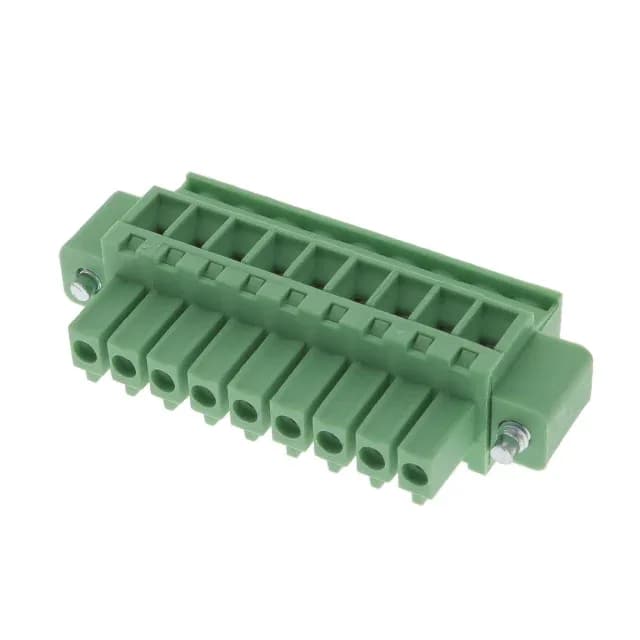

The 0395077009: The clamp accepts 16-30 AWG wire with a 6.5 mm strip length. For a 16 AWG power feed, the full cross-section fills the cage; for a 30 AWG signal wire, the clamp still bites reliably because the rising plate distributes force evenly.
Where the 270° wire entry saves enclosure space
In a shallow junction box or behind a panel, this lets the wire bundle hug the board surface instead of standing upright, reducing the required z-height budget.
Mating flange and panel fit
A mating flange with an M2 screw is built into the plug body — it bolts the plug to the matching header, locking the pair together against vibration in industrial control cabinets or conveyor systems. The flange also prevents accidental disconnection during maintenance.
