Molex 0395138010 — Header Plugs & Sockets

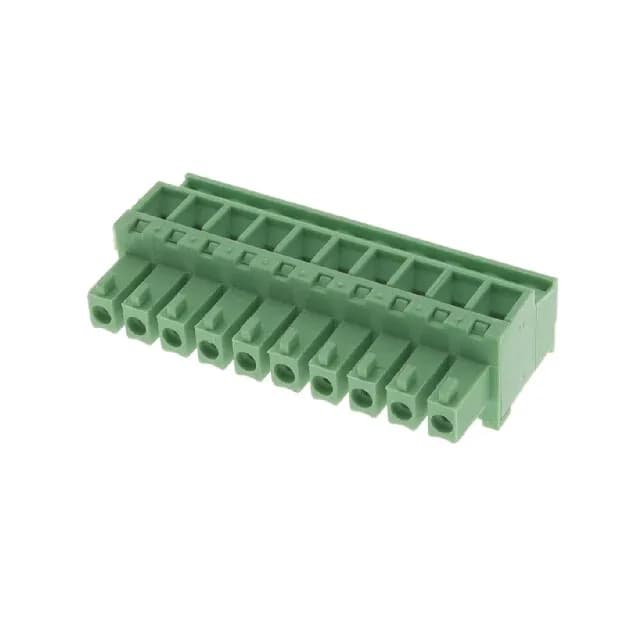

Molex 0395138010 Eurostyle ESE 39513 10-Position 3.81mm Plug

MPN0395138010
Active

Molex Eurostyle ESE 39513, 0395138010, plug, female sockets, 10 positions, 0.150" (3.81mm) pitch, 8 A UL, 300 V UL, screw rising cage clamp, green, free hanging, UL94 V-0.

$3.0200Ref. price · indicative, final on quote
Molex 0395138010 datasheet (PDF)
SeriesEurostyle ESE 39513
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

0395138010 key specifications
ParameterValue
TypePlug, Female Sockets
SeriesEurostyle ESE 39513
MountingFree Hanging (In-Line)
Voltage - UL300 V
Current - UL8 A
Plug wire entry90°
Wire strip length6.5mm
Wire gauge or range - AWG16-30 AWG
Operating temperature-40°C ~ 115°C
ColorGreen
Contact materialPhosphor Bronze
Housing materialPolyamide (PA66), Nylon 6/6

All specifications

0395138010 additional specifications
ParameterValue
Insulation height0.750\" (19.05mm)
Material flammability ratingUL94 V-0
Pitch0.150\" (3.81mm)
PackageBulk
Torque - screw0.23 Nm (2.0 Lb-In)
Number of levels1
Termination styleScrew - Rising Cage Clamp
Positions10
Positions per level10
Contact mating finishTin

Product details

10-Position 3.81mm Plug — Active, Screw-Clamp Termination

The 0395138010: Molex Eurostyle ESE 39513 plug, 10 positions, 0.150" (3.81mm) pitch. Screw-rising cage clamp termination — the clamp lifts as the screw tightens, pulling the wire into the contact beam without cutting strands.

90° Wire Entry, Free Hanging Mount

Plug wire entry is 90° — wires exit perpendicular to the mating face, useful for routing along a panel or enclosure wall. Free-hanging (in-line) mount; mates with a 3.81mm pitch Eurostyle header (sold separately). The 0.750" (19.05mm) insulation height clears the header shroud.

Frequently asked questions

Where can I buy Molex 0395138010 and how is it quoted?

Molex 0395138010 is active and orderable. Sourced through independent distribution per RFQ — availability and current pricing confirmed at quote time. No stock-holding claim; quoted against your BOM quantity.

What is the pitch of 0395138010 and what header does it mate with?

Pitch is 0.150" (3.81mm). Mates with a 3.81mm pitch Eurostyle ESE header (base product number 039513). The 10-position plug matches a 10-position header of the same series.
