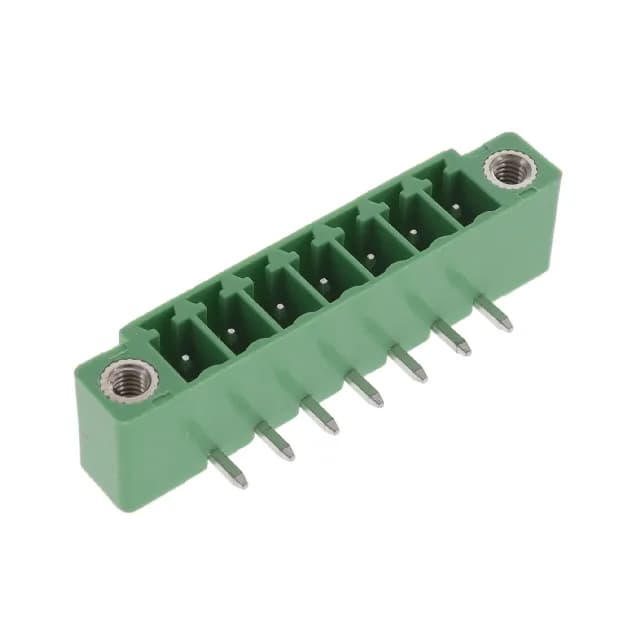

Molex 0395166007 Eurostyle ESE 3.81mm Right-Angle Header

MPN0395166007
Active

Molex Eurostyle ESE 39516 series, 0395166007 — 7-position, 3.81mm pitch, right-angle shrouded header, male pins, tin-plated contacts, through-hole solder termination, UL94 V-0 polyamide housing, green color, rated 8 A at 300 V.

$2.9000Ref. price · indicative, final on quote
SeriesEurostyle ESE 39516
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

0395166007 key specifications
ParameterValue
TypeHeader, Male Pins, Shrouded (4 Side)
SeriesEurostyle ESE 39516
MountingThrough Hole
Voltage - UL300 V
Current - UL8 A
Operating temperature-40°C ~ 105°C
ColorGreen
Housing materialPolyamide (PA66), Nylon 6/6
Insulation height0.270\" (6.86mm)
Material flammability ratingUL94 V-0
Pitch0.150\" (3.81mm)
PackageBulk

All specifications

0395166007 additional specifications
ParameterValue
FeaturesMating Flange
Number of levels1
Termination styleSolder
Header orientation90°, Right Angle
Contact tail length0.138\" (3.50mm)
Positions7
Positions per level7
Contact mating finishTin

Product details

7-Position Right-Angle Header for Terminal Block Mating

The 0395166007 is a 7-position, single-level, right-angle shrouded header from the Molex Eurostyle ESE 39516 series. It mates with Eurostyle terminal block plugs to create a wire-to-board connection for industrial control and instrumentation panels. The 0.270" insulation height leaves clearance for wire entry on the mating plug. Rated 8 A per contact at 300 V with a tin-plated mating finish.

Board Layout and Mounting Fit

The mating flange (feature) provides a screw-down lock between header and plug, preventing vibration-induced separation in industrial environments. The 300 V UL rating is typical for signal-level and low-power distribution circuits in control panels.
