Molex 0395172002

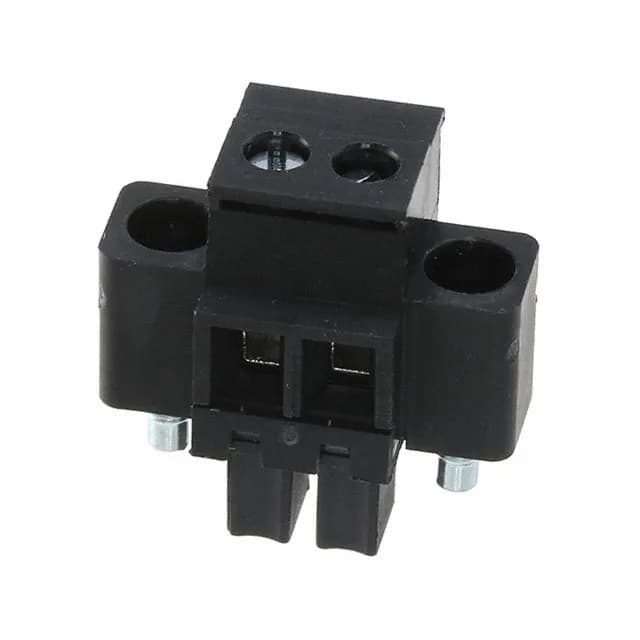

Molex 0395172002 Eurostyle ESE 39517 2-Position 3.81mm Plug

MPN 0395172002
Active

Molex Eurostyle ESE 39517 plug, 2 positions, 0.150" (3.81mm) pitch, screw rising cage clamp termination, 8 A / 300 V, tin contacts, UL94 V-0 housing, black, free hanging.

$1.3600 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
RoHSROHS3 Compliant
IncotermsDAP / DDP Available
SeriesEurostyle ESE 39517
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

0395172002 key specifications
ParameterValue
TypePlug, Female Sockets
SeriesEurostyle ESE 39517
MountingFree Hanging (In-Line)
Voltage - UL300 V
Current - UL8 A
Plug wire entry270°
Wire strip length6.5mm
Wire gauge or range - AWG16-30 AWG
Operating temperature-40°C ~ 115°C
ColorBlack
Contact materialPhosphor Bronze
Housing materialPolyamide (PA66), Nylon 6/6

All specifications

0395172002 additional specifications
ParameterValue
Insulation height0.740\" (18.80mm)
Material flammability ratingUL94 V-0
Pitch0.150\" (3.81mm)
PackageBulk
FeaturesMating Flange
Torque - screw0.23 Nm (2.0 Lb-In)
Number of levels1
Termination styleScrew - Rising Cage Clamp
Positions2
Positions per level2
Contact mating finishTin

Product details

What This 2-Position 3.81mm Plug Does on the Wire

The 0395172002: This is a 2-position plug with female sockets from the Molex Eurostyle ESE 39517 series, built for wire-to-board termination at 0.150" (3.81mm) pitch. The 8 A per contact at 300 V rating keeps it in the signal-level power distribution range — think control cabinet wiring, sensor/actuator power, or PLC I/O field connections where 2 circuits are all you need. Mating flange on the plug body locks it to the matching header, keeping the pair together under vibration in an industrial panel.

Mates with a male pin header of the same 0.150" (3.81mm) pitch, 2 positions, from the Eurostyle ESE 39517 series — typically the 03951701xx headers. Free hanging (in-line) mounting — no panel cutout needed; the plug floats on the wire and latches onto the header.

Temperature and Environment

Rated -40°C to 115°C operating range, with a UL94 V-0 polyamide housing — the flame rating covers equipment inside an enclosure where the connector is part of the power distribution path.
