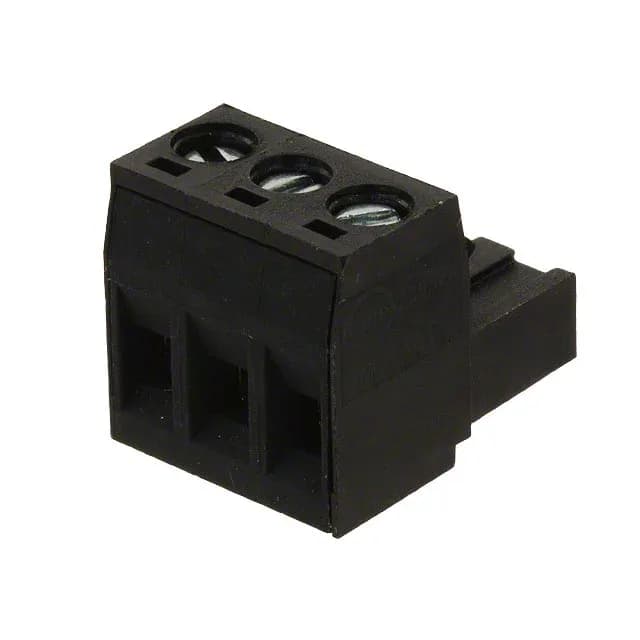

3-Position Screw-Clamp Plug for Panel Wiring
The 0395200003: Rated 18 A at 300 V UL, the plug suits control cabinets, power distribution blocks, and industrial panel wiring where the screw termination is preferred over a crimp-and-insert connector. The single-level, 180° wire entry keeps the cable path straight through the plug body, simplifying routing in a crowded enclosure. Retention latches on the non-wire side lock the plug into the mating header, resisting vibration-induced disconnection in motor drives or conveyor controls.
ROHS3 Compliant. The tin-plated phosphor bronze contacts and PA66 housing meet the restricted-substance thresholds for EU and global markets.
This is the wire-side plug (female sockets) — it mates with a male pin header from the same Eurostyle ESE 39520 series. Termination is screw-driven rising cage clamp: strip the wire to 6.5 mm, insert into the clamp opening, and tighten the screw to 0.56 Nm. No crimp tool, no ferrule — the clamp directly grips the conductor. The 12-30 AWG range covers most signal and low-power circuits in industrial control.
