The 0395200005: Wire strip length is 6.5 mm — strip to that mark, insert fully into the cage, and tighten the screw to 0.56 Nm. The rising cage clamp lifts to grip the conductor against the current bar; it works with solid or stranded wire in the 12-30 AWG range. Retention latches on the non-wire side engage with the mating header's slots. When you hear the latch click, the plug is locked — no secondary fastener needed for most industrial vibration profiles.

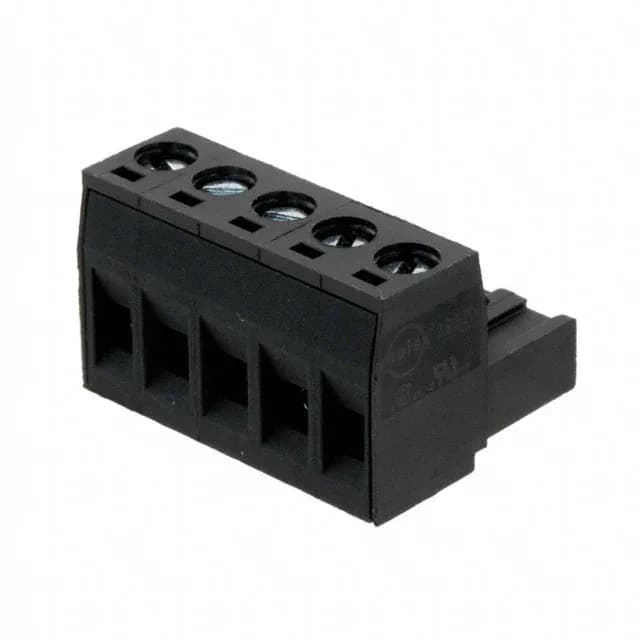

Molex 0395200005 Eurostyle ESE 5-Position Plug, 18 A
MPN0395200005
Active
Molex Eurostyle ESE 39520, Plug, Female Sockets, 5 positions, 0.197" (5.00mm) pitch, Free Hanging, Screw - Rising Cage Clamp, 18 A, 300 V, Black, UL94 V-0
$3.9200Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesEurostyle ESE 39520
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Plug, Female Sockets |
| Series | Eurostyle ESE 39520 |
| Mounting | Free Hanging (In-Line) |
| Voltage - UL | 300 V |
| Current - UL | 18 A |
| Plug wire entry | 180° |
| Wire strip length | 6.5mm |
| Wire gauge or range - AWG | 12-30 AWG |
| Operating temperature | -40°C ~ 115°C |
| Color | Black |
| Contact material | Phosphor Bronze |
| Housing material | Polyamide (PA66), Nylon 6/6 |
All specifications
| Parameter | Value |
|---|---|
| Insulation height | 0.591\" (15.00mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.197\" (5.00mm) |
| Package | Bulk |
| Features | Retention Latches (Non-Wire Side) |
| Torque - screw | 0.56 Nm (5.0 Lb-In) |
| Number of levels | 1 |
| Termination style | Screw - Rising Cage Clamp |
| Positions | 5 |
| Positions per level | 5 |
| Contact mating finish | Tin |
Product details
Frequently asked questions
What is the current rating of Molex 0395200005?
Rated 18 A at 300 V per UL.
Does Molex 0395200005 have a replacement or cross reference?
The base product number is 039520; the 5-position variant is specific to this order code.
