Molex 0395205007 — Header Plugs & Sockets

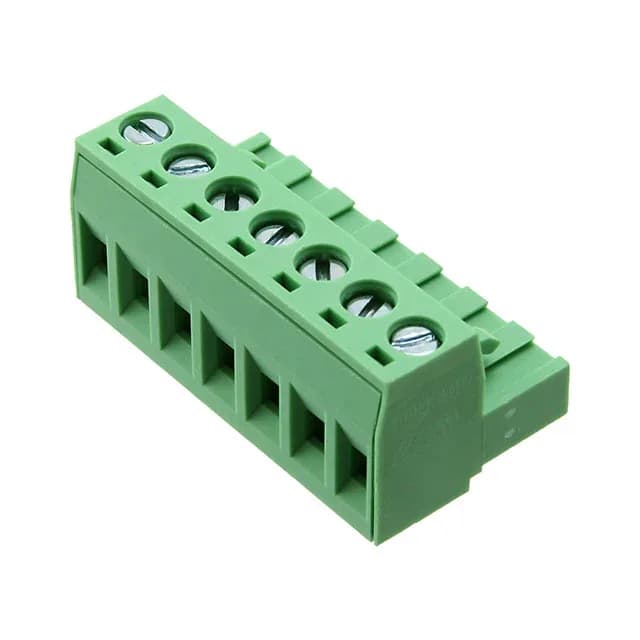

Molex 0395205007 Eurostyle ESE 7-Position Plug, 5.00mm, 18A

MPN0395205007
Active

Molex Eurostyle ESE 39520, Plug, Female Sockets, 7 positions, 0.197" (5.00mm) pitch, 18 A, 300 V, rising cage clamp, green, UL94 V-0.

$4.3100Ref. price · indicative, final on quote
Molex 0395205007 datasheet (PDF)
SeriesEurostyle ESE 39520
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

0395205007 key specifications
ParameterValue
TypePlug, Female Sockets
SeriesEurostyle ESE 39520
MountingFree Hanging (In-Line)
Voltage - UL300 V
Current - UL18 A
Plug wire entry180°
Wire strip length6.5mm
Wire gauge or range - AWG12-30 AWG
Operating temperature-40°C ~ 115°C
ColorGreen
Contact materialPhosphor Bronze
Housing materialPolyamide (PA66), Nylon 6/6

All specifications

0395205007 additional specifications
ParameterValue
Insulation height0.591\" (15.00mm)
Material flammability ratingUL94 V-0
Pitch0.197\" (5.00mm)
PackageBulk
FeaturesRetention Latches (Non-Wire Side)
Torque - screw0.56 Nm (5.0 Lb-In)
Number of levels1
Termination styleScrew - Rising Cage Clamp
Positions7
Positions per level7
Contact mating finishTin

Product details

7-Position Plug for Panel and Machine Wiring

The 0395205007: This Molex Eurostyle ESE 39520 plug is a 7-position, single-level terminal block plug with female sockets, designed for free-hanging (in-line) mounting. Retention latches on the non-wire side lock the plug into the mating header, preventing accidental disconnection under vibration.

The rising cage clamp mechanism secures the conductor against the current bar — no wire ferrule is required, but a 6.5 mm strip length is recommended for full contact. The screw torque of 0.56 Nm ensures the clamp grips without damaging the wire. Wire entry is 180° (straight-in), which simplifies routing in panel boxes and junction enclosures. The plug mates with the corresponding Eurostyle ESE 39520 header (sold separately).

The Eurostyle ESE 39520 series includes other position counts (2 through 24), but a 7-position plug is specific to this order code.

Frequently asked questions

What is the pinout and wiring diagram for 0395205007?

Each position connects to a rising cage clamp terminal — wire is inserted into the clamp and secured with the screw. No internal pinout diagram is published; the circuit assignment is determined by the mating header layout.

Is there a direct replacement or equivalent for 0395205007?

No official replacement is listed by Molex. The Eurostyle ESE 39520 series includes other position counts, but a 7-position plug is specific to this order code. Confirm the mating header and board footprint before substituting.
