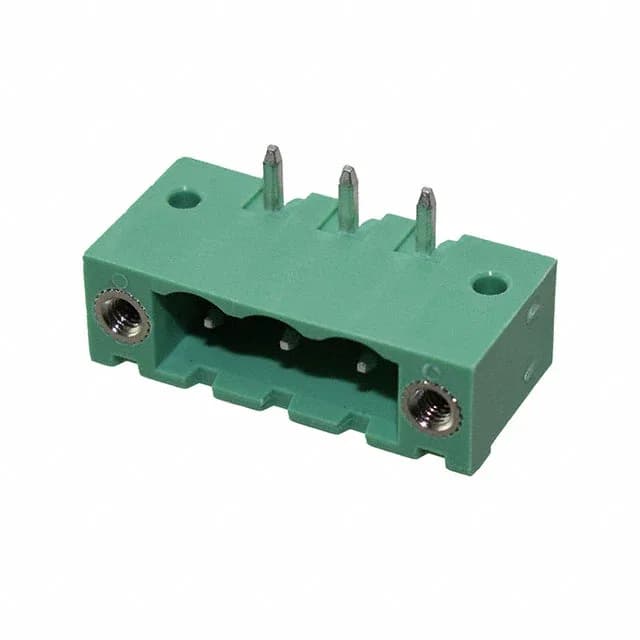

Molex Eurostyle ESE 39536, Header, Male Pins, Shrouded (4 Side), 3 positions, 0.200" (5.08 mm) pitch, 1 level, right-angle, through-hole, tin contacts, 18 A, 300 V, UL94 V-0, green housing, bulk.
| Parameter | Value |
|---|---|
| Type | Header, Male Pins, Shrouded (4 Side) |
| Series | Eurostyle ESE 39536 |
| Mounting | Through Hole |
| Voltage - UL | 300 V |
| Current - UL | 18 A |
| Operating temperature | -40°C ~ 105°C |
| Color | Green |
| Contact material | Brass |
| Housing material | Polyamide (PA66), Nylon 6/6 |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.200\" (5.08mm) |
| Package | Bulk |
| Parameter | Value |
|---|---|
| Features | Mating Flange |
| Number of levels | 1 |
| Termination style | Solder |
| Header orientation | 90°, Right Angle |
| Positions | 3 |
| Positions per level | 3 |
| Contact mating finish | Tin |
The 0395365003: This is a 3-position, single-level, right-angle header from the Molex Eurostyle ESE 39536 series.
Through-hole solder termination provides a robust mechanical anchor compared to surface-mount, especially when the mated plug sees cable strain or vibration.
Submit an RFQ for current availability and pricing — no stock-holding claim, confirmed per request.
