Molex 0395443004 — Wire-to-Board Connectors

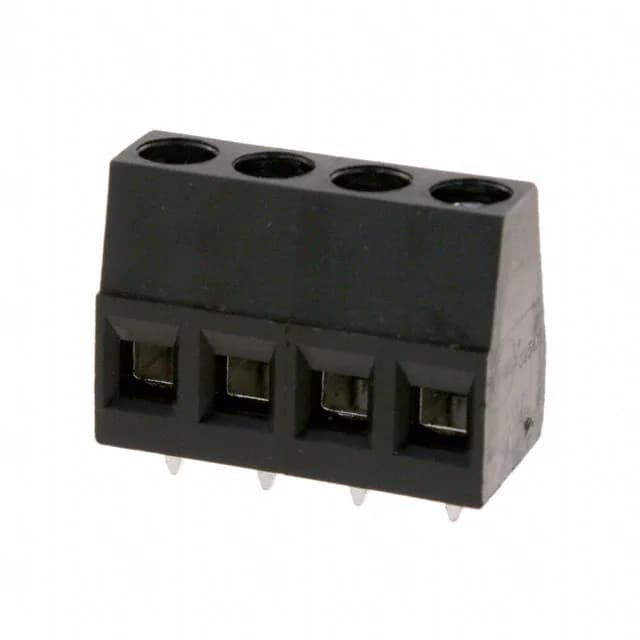

Molex 0395443004 Eurostyle ESE Terminal Block, 4 Position

MPN0395443004
Active

Molex Eurostyle ESE 39544 terminal block, 0395443004, 4 positions, 1 level, 5.08 mm pitch, 15 A, 300 V, through hole, horizontal wire entry, screw rising cage clamp, black PA66 housing.

$1.7800Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

0395443004 key specifications
ParameterValue
SeriesEurostyle ESE 39544
MountingThrough Hole
Voltage300 V
Current15 A
Wire gauge12-30 AWG
Wire terminationScrew - Rising Cage Clamp
Operating temperature-40°C ~ 105°C
ColorBlack
Housing materialPolyamide (PA66), Nylon 6/6
Clamp material - platingBrass - Nickel Plated
Screw material - platingSteel - Zinc Plated
Contact material - platingBrass - Tin Plated

All specifications

0395443004 additional specifications
ParameterValue
Pitch0.200\" (5.08mm)
PackageBulk
ManufacturerMolex
Screw threadM3
Torque - screw0.51 Nm (4.5 Lb-In)
Number of levels1
Mating orientationHorizontal with Board
Positions per level4

Product details

The Molex 0395443004 is a 4-position, single-level Eurostyle ESE 39544 terminal block with a 5.08 mm pitch. It terminates wires via a screw-driven rising cage clamp — the clamp plate lifts to capture the conductor, not wrap it around the screw shaft, giving a gas-tight connection repeatable over multiple terminations.

Key Ratings and Termination Details

Rated 15 A at 300 V, the 0395443004 carries enough headroom for feeding 24 VDC field devices or 120 VAC pilot circuits from a single terminal point. The rising cage clamp accepts 12 to 30 AWG — solid or stranded — and the M3 screw is torqued to 0.51 Nm (4.5 Lb-In). The clamp and contact are brass with tin plating; the screw is steel with zinc plating.

Frequently asked questions

What wire gauge does 0395443004 accept and what is the termination style?

It accepts 12 to 30 AWG wire and terminates via a screw-driven rising cage clamp — the clamp plate lifts to capture the conductor, not wrap it around the screw. Torque the M3 screw to 0.51 Nm (4.5 Lb-In).
