Molex 0399700104 — Wire-to-Board Headers

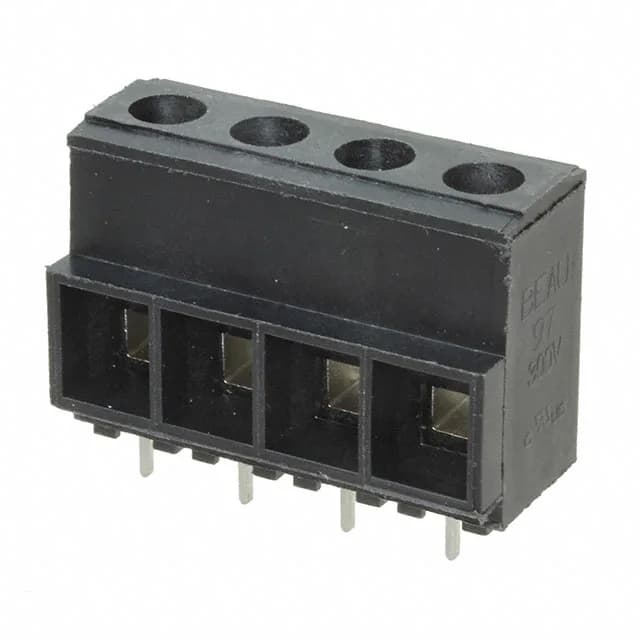

Molex Eurostyle 39970 0399700104, 4-Position 60 A Terminal Block

MPN0399700104
Active

Molex Eurostyle 39970 0399700104, 4-position PCB terminal block, 0.400" (10.16mm) pitch, 60 A, 300 V, 6 AWG, side-entry, rising cage clamp, through-hole, black PBT housing, M4 screw, 1.36 Nm torque.

$12.7400Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesEurostyle 39970
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

0399700104 key specifications
ParameterValue
SeriesEurostyle 39970
MountingThrough Hole
Voltage300 V
Current60 A
Wire gauge6 AWG
Wire terminationScrew - Rising Cage Clamp
Operating temperature-40°C ~ 130°C
ColorBlack
Housing materialPolybutylene Terephthalate (PBT)
Clamp material - platingBrass - Nickel Plated
Screw material - platingBronze - Tin Plated
Contact material - platingCopper - Tin Plated

All specifications

0399700104 additional specifications
ParameterValue
Pitch0.400\" (10.16mm)
PackageTray
Screw threadM4
Torque - screw1.36 Nm (12 Lb-In)
Number of levels1
Mating orientationHorizontal with Board
Positions per level4

Product details

Board Footprint and Mating Orientation

The 0399700104: This block mounts through-hole and mates horizontally with the board — the wire entry is parallel to the PCB surface, which keeps the overall height low in an enclosure. The 10.16 mm pitch and 4 positions per level define the board footprint: four holes on 10.16 mm centers, with the screw axis perpendicular to the board edge. The single-level design means all four terminations are on the same plane, simplifying routing for a power distribution rail.

Lifecycle and Compliance

Frequently asked questions

What wire gauge does 0399700104 accept?

It accepts 6 AWG wire, terminated via the rising cage clamp with an M4 screw torqued to 1.36 Nm.

Will 0399700104 drop into a panel designed for 395443005?

No — the 0399700104 uses a 10.16 mm pitch versus the 5.08 mm pitch of the 39544 series, so the PCB footprint is completely different and the current ratings do not match.

Where can I buy 0399700104?

This part is sourced and quoted to order against an RFQ through independent distribution; availability and current pricing are confirmed at quote time.
