Molex 0432024101 — Modular Jacks (RJ)

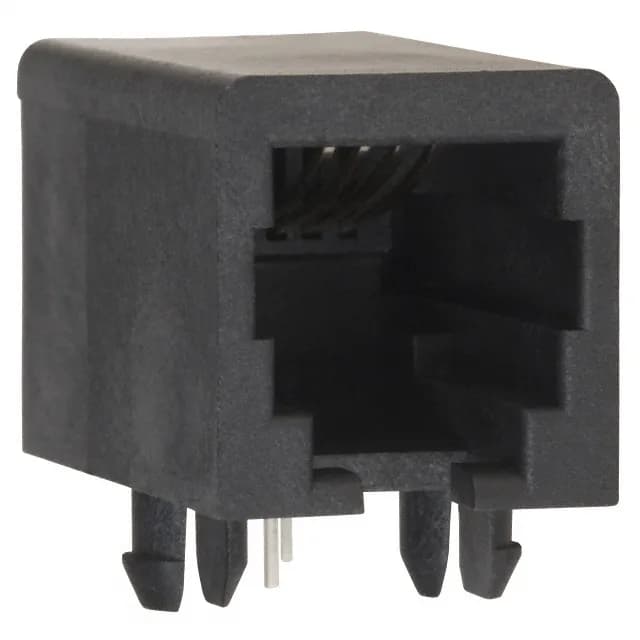

Molex 43202 0432024101 Modular Jack, 4P4C R/A Unshielded

MPN0432024101
Active

Molex 43202 series modular jack, 4P4C (RJ9/RJ10/RJ22), right-angle through-hole, unshielded, 50.0µin gold contacts, board lock, -40°C to 85°C operating range.

$1.9600Ref. price · indicative, final on quote
Molex 0432024101 datasheet (PDF)
RoHSROHS3 Compliant
Series43202
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

0432024101 key specifications
ParameterValue
Series43202
MountingThrough Hole
Connector typeJack
Operating temperature-40°C ~ 85°C
LED colorDoes Not Contain LED
Contact materialPhosphor Bronze
Housing materialPolyamide (PA), Nylon, Glass Filled
PackageTray
RatingsCat4
FeaturesBoard Lock
ShieldingUnshielded
Orientation90° Angle (Right)

All specifications

0432024101 additional specifications
ParameterValue
TerminationSolder
Tab directionDown
Contact finishGold
Rows1
Number of ports1
Contact finish thickness50.0µin (1.27µm)
Number of positions (Contacts)4p4c (RJ9, RJ10, RJ22)

Product details

Right-angle 4P4C modular jack with board lock

The Molex 0432024101 is a 4P4C (RJ9, RJ10, RJ22) modular jack from the 43202 series, configured as a right-angle through-hole mount with a board lock feature. The 4P4C contact arrangement carries four positions and four conductors — the standard for handset cords and some data-communication cables, not to be confused with the wider 6P4C or 6P6C (RJ12) footprint.

Gold-plated contacts rated for industrial temperature range

Gold at this thickness is standard for telecom and instrumentation jacks that see frequent reconnect in humid or mildly corrosive environments. The unshielded body and no-LED design keep the jack simple for signal-only paths where EMI containment is handled elsewhere in the system.

Frequently asked questions

Is 0432024101 compatible with standard RJ12 (6P6C) plugs?

No. The 0432024101 is a 4P4C jack, meaning it accepts only 4-position, 4-conductor plugs (RJ9, RJ10, RJ22). A 6P6C RJ12 plug has a wider body and more contacts — it will not fit into this jack. Verify the plug's position count before mating.
