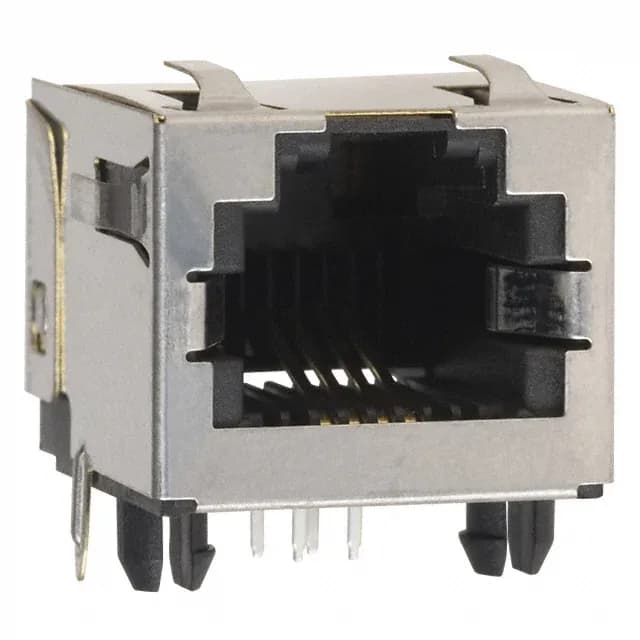

Molex 43860 Series modular jack, 0438600006, 6p4c (RJ11, RJ14), 1 port, right-angle, through-hole, shielded with EMI finger, gold 50.0µin (1.27µm) contacts, board lock, tray.
| Parameter | Value |
|---|---|
| Series | 43860 |
| Mounting | Through Hole |
| Connector type | Jack |
| Operating temperature | -40°C ~ 85°C |
| LED color | Does Not Contain LED |
| Contact material | Phosphor Bronze |
| Housing material | Polyamide (PA), Nylon, Glass Filled |
| Package | Tray |
| Ratings | Cat3 |
| Features | Board Lock |
| Shielding | Shielded, EMI Finger |
| Orientation | 90° Angle (Right) |
| Parameter | Value |
|---|---|
| Termination | Solder |
| Tab direction | Up |
| Contact finish | Gold |
| Rows | 1 |
| Number of ports | 1 |
| Contact finish thickness | 50.0µin (1.27µm) |
| Number of positions (Contacts) | 6p4c (RJ11, RJ14) |
The Molex 0438600006 is a 6-position 4-conductor (6p4c) modular jack from the 43860 series, wired for RJ11 and RJ14 applications. It mounts right-angle to the PCB via through-hole solder tails, with a shielded shell and integrated EMI finger for conducted emissions control.
No end-of-life notice or successor is recorded.
No. The 0438600006 is a 6-position (6p4c) jack sized for RJ11/RJ14 plugs. An 8-position RJ45 plug is physically wider and will not insert into this 6-position opening.
