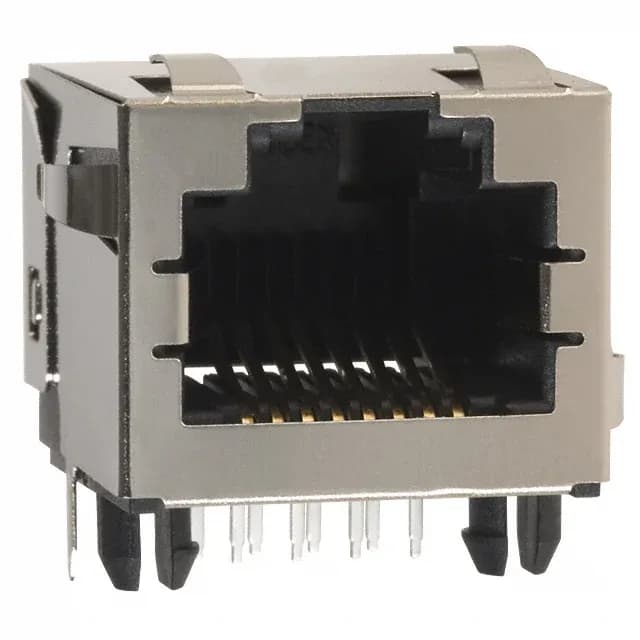

Molex 0438600013

Molex 43860 0438600013 RJ45 Jack, Shielded, Cat3

MPN 0438600013
Active

Molex 43860 Series, RJ45 Jack, 8p8c (8 Position 8 Contact), Through Hole, Right Angle, Shielded, EMI Finger, Gold 50.0µin (1.27µm) Contact Finish, Board Lock, Tray.

$3.4400 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

0438600013 key specifications
ParameterValue
Series43860
MountingThrough Hole
Connector typeJack
Operating temperature-40°C ~ 85°C
LED colorDoes Not Contain LED
Contact materialPhosphor Bronze
Housing materialPolyamide (PA), Nylon, Glass Filled
RatingsCat3
FeaturesBoard Lock
PackageTray
ShieldingShielded, EMI Finger
Orientation90° Angle (Right)

All specifications

0438600013 additional specifications
ParameterValue
TerminationSolder
ManufacturerMolex
Tab directionUp
Contact finishGold
Rows1
Number of ports1
Contact finish thickness50.0µin (1.27µm)
Number of positions (Contacts)8p8c (RJ45, Ethernet)

Product details

The Molex 0438600013 is a right-angle RJ45 jack from the Series 43860, designed for through-hole mounting on a PCB. It carries 8p8c (8 position, 8 contact) layout standard to Ethernet, with a Cat3 rating that defines its performance ceiling for 10BASE-T and voice applications. The shielded shell with an integrated EMI finger provides conducted noise rejection at the board edge — useful in industrial or telecom equipment where the jack sits near a panel cutout.

This jack mates with any standard 8p8c (RJ45) plug — no proprietary keying. The tab direction is up, which matters for panel-mount alignment: the plug latch faces the same side as the board-lock posts.
