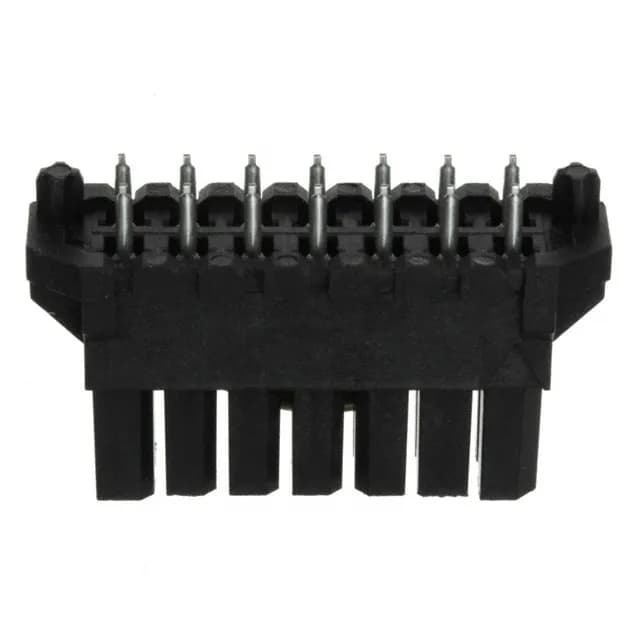

The Molex 0447691402 is a 14-circuit receptacle in the Micro-Fit 3.0 BMI 44769 series, designed for board-to-board or cable-to-board interconnects. It uses a 0.118" (3.00 mm) pitch across two rows, with a mated stack height of 16.86 mm — the z-height is fixed by the BMI (Blind Mating Interface) geometry, not adjustable. Rated 5 A per circuit at 250 VAC, with gold plating on the mating interface at 15.0 µin (0.38 µm) and tin on the solder posts at 100.0 µin (2.54 µm). The housing is black LCP, glass-filled, rated UL94 V-0.
This 14-position receptacle sits alongside the 12- and 16-circuit members of the same Micro-Fit 3.0 BMI 44769 series. If your board layout calls for 14 circuits, this is the direct fit.
It is ROHS3 Compliant.
Blind mating and board guides are integrated into the housing — these features align the connector during assembly in enclosures where the mating interface is not visible.
