Molex 0459854343

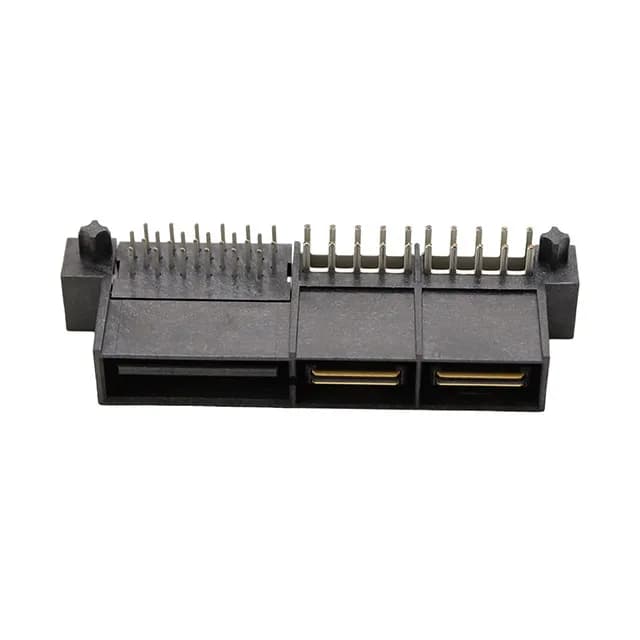

Molex 0459854343 EXTreme LPHPower Plug, 28 Pos, 0.050" Pitch

MPN 0459854343
Active

Molex EXTreme LPHPower 45985 series plug, 28 positions (24 signal, 4 power), 0.050" (1.27mm) pitch, through-hole right-angle, gold 30.0µin contacts, UL94 V-0, tray.

$9.3500 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026

Specifications

0459854343 specifications
ParameterValue
SeriesEXTreme LPHPower 45985
MountingThrough Hole, Right Angle
Connector typePlug, Center Strip Contacts
Operating temperature-40°C ~ 105°C
ColorBlack
Material flammability ratingUL94 V-0
Pitch0.050\" (1.27mm)
FeaturesBoard Guide
PackageTray
TerminationSolder
ManufacturerMolex
Contact finishGold
Rows2
Positions28
Contact layout, typical24 Signal, 4 Power
Contact finish thickness30.0µin (0.76µm)

Product details

28-Position LPHPower Plug with Mixed Signal and Power Layout

The Molex 0459854343 is a 28-position plug from the EXTreme LPHPower 45985 series, configured with 24 signal contacts and 4 power contacts in a dual-row, 0.050" (1.27mm) pitch layout.

0.050" Pitch and Mixed Contact Array

The 0.050" (1.27mm) pitch is tighter than the 0.100" pitch used on standard power headers — it saves board real estate but demands careful trace routing between the 24 signal and 4 power contacts. The power contacts are physically larger within the same pitch envelope, so the board layout must allocate wider traces or copper pours to those four positions.
