Molex 0464369203 — Specialty Circular

Molex EXTreme Ten60Power 0464369203, 3-Position, 60 A

MPN0464369203
Active

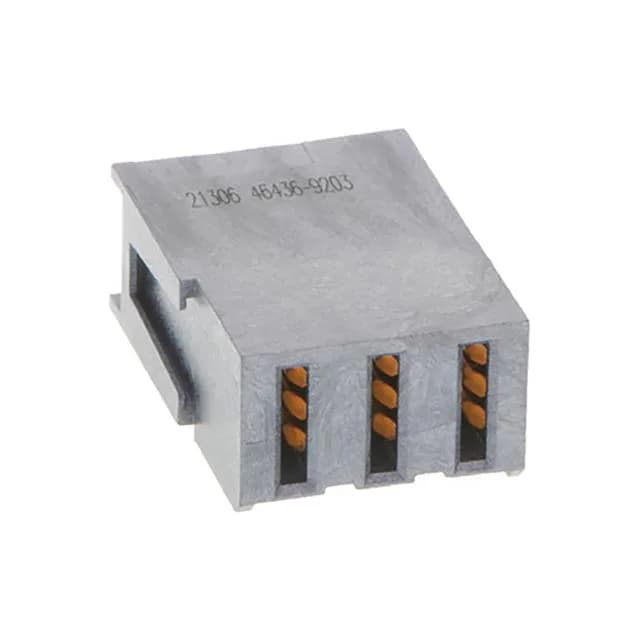

Molex EXTreme Ten60Power 46436 series, 0464369203, 3-position receptacle, female blade sockets, 5.50 mm pitch, 60 A per contact, 600 VAC, press-fit, through-hole right-angle, gold 30.0 µin, black, tray.

$6.2600Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesEXTreme Ten60Power 46436
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026

Specifications

0464369203 specifications
ParameterValue
SeriesEXTreme Ten60Power 46436
MountingThrough Hole, Right Angle
Connector typeEXTreme Ten60Power
Voltage rating600VAC, 250VDC
Current rating60A per Contact
Operating temperature-40°C ~ 105°C
ColorBlack
Material flammability ratingUL94 V-0
Pitch0.217\" (5.50mm)
PackageTray
TerminationPress-Fit
Contact finishGold
Rows1
Positions3
Contact layout, typical3 Power
Contact finish thickness30.0µin (0.76µm)

Product details

The Molex 0464369203 is a 3-position receptacle from the EXTreme Ten60Power 46436 series, designed to carry 60 A per contact in a single row of power blades. That rating puts each contact at bus-level current — think the main DC rail in a server PSU or a battery interconnect, not a signal line. The 5.50 mm pitch is wide enough to support the 600 VAC / 250 VDC voltage rating with adequate creepage between adjacent blades, so you don't get tracking across the housing surface under high-voltage conditions.

Press-fit and right-angle — the mechanical fit for a backplane

Press-fit termination means the contact is pressed into a plated through-hole without solder — a clean, rework-friendly assembly for backplane power distribution where you want to avoid the thermal stress of wave soldering.

Frequently asked questions

What is the pitch of the Molex 0464369203?

The pitch is 0.217" (5.50 mm), which is wide enough to support the 600 VAC rating with adequate creepage between adjacent power blades.

Is the 0464369203 RoHS compliant?

Yes, it carries a ROHS3 compliance status.

Where can I buy Molex 0464369203?

This part is active and sourced to order.
