Power Blade Receptacle for High-Current Backplanes

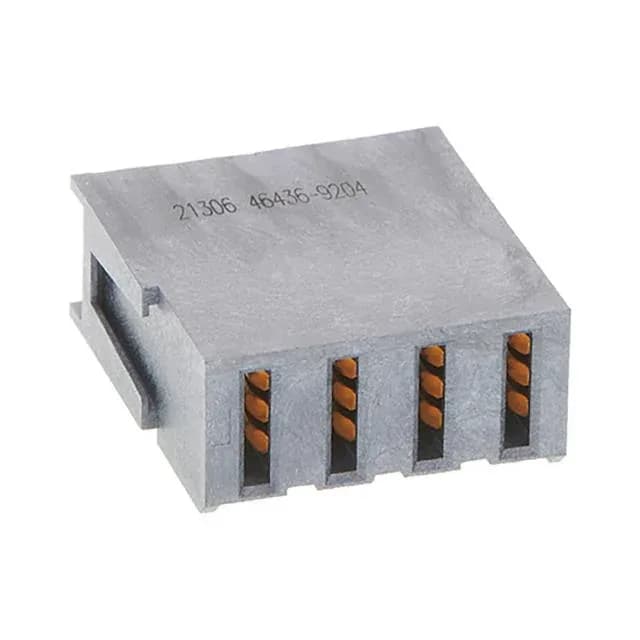

The Molex 0464369204 is a 4-position receptacle from the EXTreme Ten60Power 46436 series, designed to carry 60 A per contact on a 5.50 mm pitch. The press-fit termination eliminates soldering, which makes this part a fit for backplane assemblies where rework and high-reliability solderless connections are required.
The press-fit tail requires a PCB with plated through-holes sized per the Molex application drawing — the press-in force and hole diameter are specified in the product drawing to avoid barrel damage. The 4 power positions are loaded all positions, with a contact layout typical of 4 power circuits.
