Power Blade Connector for High-Current Bus Distribution

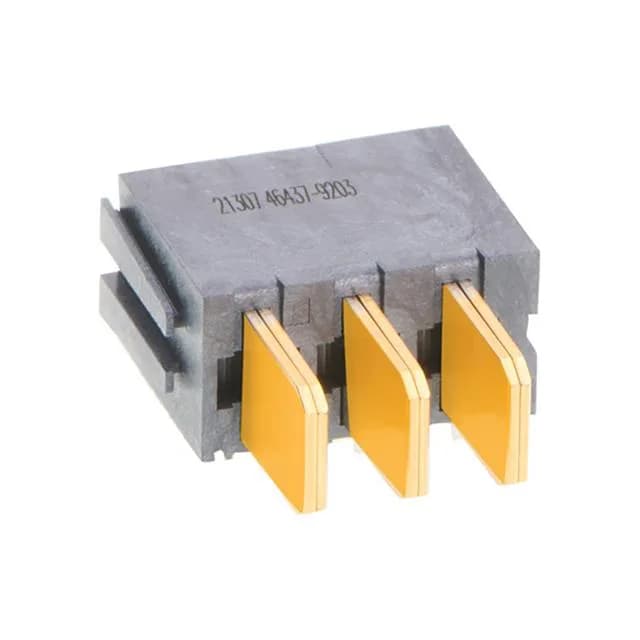

The Molex 0464379203 is a 3-position plug in the EXTreme Ten60Power 46437 series, carrying three male power blades rated 60 A per contact. Termination is press-fit into a through-hole, right-angle board layout — no solder, which means the assembly is rework-friendly and avoids thermal stress on the PCB. The right-angle orientation puts the mating axis parallel to the board, suited for board-edge power entry or busbar attachment in a constrained enclosure.
Press-fit termination means the compliant pin is pressed into a plated through-hole — no solder wicking, no flux residue, and the connection is gas-tight. This is a standard choice for backplane and high-reliability assemblies where solderless connections are preferred for field service or rework. The right-angle orientation requires the board to have clearance for the connector body extending perpendicular to the PCB edge.
