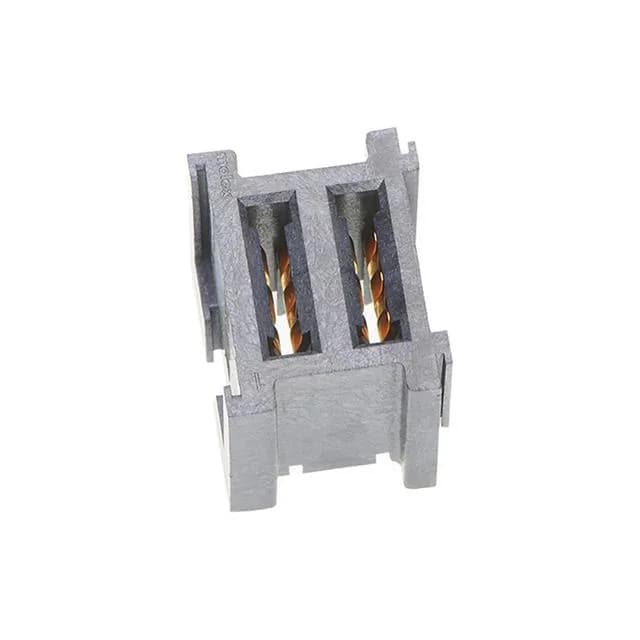

60 A per contact — the 2-position power blade that carries the bus
Press-fit termination means this connector is designed for solderless backplane assembly: the compliant pin compresses into a plated through-hole, eliminating reflow or wave solder and providing a gas-tight joint suited for high-reliability power distribution.
Press-fit termination — no solder, no reflow, high-reliability backplane joint
The press-fit termination is the defining assembly feature. It mates into a standard plated through-hole on the PCB, cold-forming the pin to create a gas-tight interface. This avoids thermal stress from wave or reflow soldering, making the connector rework-friendly and suitable for backplane power distribution where solder joint reliability under vibration is critical. The through-hole mounting provides mechanical retention against the insertion force of the mating blade header.
The gold-on-gold interface also keeps contact resistance stable at 60 A over the operating life.
Operating temperature and flammability — industrial cabinet ready
The black housing is the standard colour for this series.
Mating and compatibility — the EXTreme Ten60Power system
The 2-position, 1-row layout with a 5.50 mm pitch means the.
