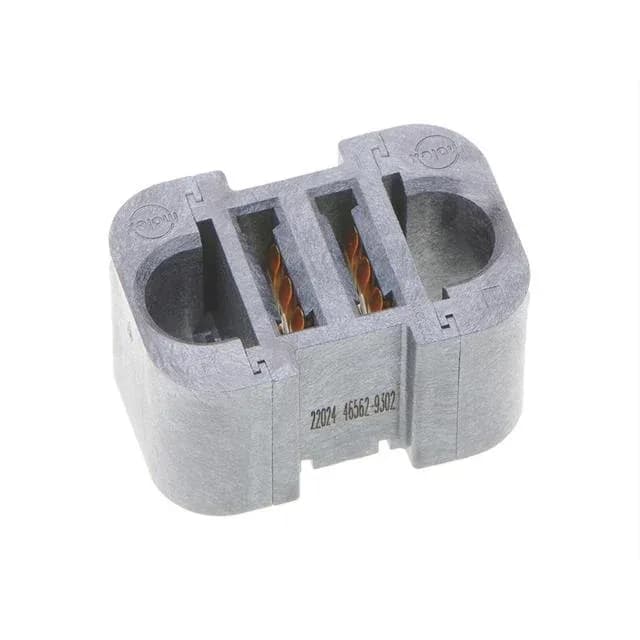

60 A power receptacle — press-fit, 2 positions, 5.50 mm pitch
It accepts female blade sockets and terminates via press-fit into a through-hole PCB — no solder required, which simplifies assembly and rework in backplane-style builds.
Press-fit termination — solderless backplane assembly
This is the standard for high-reliability backplanes where rework, thermal cycling, and vibration resistance are priorities. The through-hole mounting provides mechanical retention beyond what surface-mount can deliver at 60 A per circuit.
Contact plating — 30 µ" gold for repeated mating
Mating guide and keying
The receptacle includes a mating guide feature, which aligns the connector pair during blind-mate assembly — common in backplane or bulkhead installations where the operator cannot see the contact interface. The connector style is EXTreme Ten60Power, and the contact layout is 2 power positions, all loaded.
