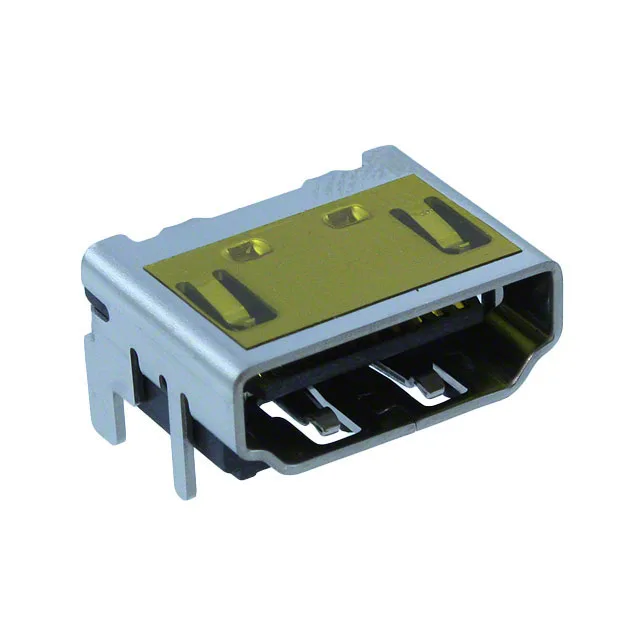

HDMI Type A Receptacle for Board-Edge Integration
The Molex 0471511061 is a 19-contact HDMI Type A receptacle from the 47151 series, designed for shielded board-edge HDMI ports. Gold-plated contacts and a copper alloy shield maintain the signal integrity required for HDMI transmission.
Molex has marked the 0471511061 as Obsolete. For BOM lines that call out this exact part number, the supply channel is limited to surplus and broker inventory. Engineers specifying a new design should evaluate current-production HDMI receptacles from the same series or an alternative manufacturer.
The 19-contact layout follows the standard HDMI Type A pinout — the receptacle accepts a standard HDMI plug and routes the TMDS data pairs, DDC clock, and +5 V supply. The shielded shell with copper alloy construction keeps common-mode noise from coupling into the differential pairs, which matters for HDMI 1.4 and earlier standards where the TMDS clock runs at up to 340 MHz.
This receptacle uses a hybrid mounting approach: the signal contacts are surface-mount soldered to the PCB pads, while the through-hole retention pins anchor the connector against the mechanical stress of plug insertion and cable strain. The detent lock feature provides tactile feedback when the plug is fully seated, reducing the risk of partial mating in field use.
