HDMI Type A Receptacle for Vertical Board Mount

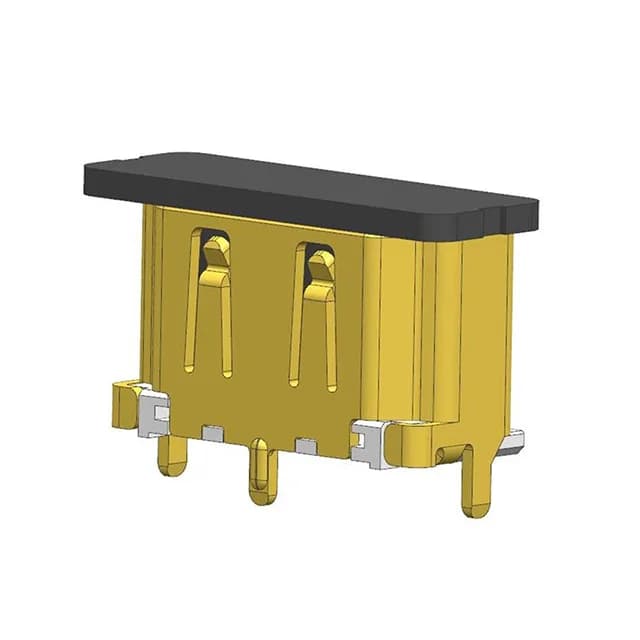

The Molex 0476591102 is a 19-contact HDMI Type A receptacle from the 47659 series, designed for vertical mounting on a PCB. It combines a Surface Mount solder tail with through-hole retention posts, giving the connector mechanical stability during reflow and in-service cable insertion and extraction. The shielded brass alloy shell provides the EMI containment required for HDMI 1.4 and 2.0 signal integrity up to the 40VDC rated voltage. Each contact is rated 0.5A, which is standard for HDMI signal lines carrying TMDS data and control channels — this is not a power-delivery connector. The gold-plated contacts and 10000 mating cycle rating indicate a design built for frequent plug/unplug duty, such as test equipment, kiosk displays, or rear-panel I/O on AV receivers. The black insulation and integrated board guide and pick-and-place features make it suitable for automated assembly lines using Tape & Reel or Cut Tape packaging.
Mounting and Termination for the Build Line
This part uses a hybrid termination: the signal contacts are reflow-soldered via Surface Mount pads, while the shell legs are through-hole soldered for mechanical retention. The through-hole posts take the shear force from cable insertion and extraction, protecting the SMT joints from stress. The Tape & Reel packaging option feeds directly into a standard pick-and-place feeder for high-volume production. Cut Tape is also available for prototype or low-volume builds. No special handling beyond standard MSL precautions is required — the connector is not moisture-sensitive per the listed packaging.
Lifecycle and Sourcing Position
For BOM planning, this means the part is stable for ongoing production without an imminent obsolescence risk. No official cross-reference or replacement part is listed by Molex — the 47659 series is the primary source. Sourcing is through independent distribution channels.
