Molex 0480251190 — Modular / RJ Connectors

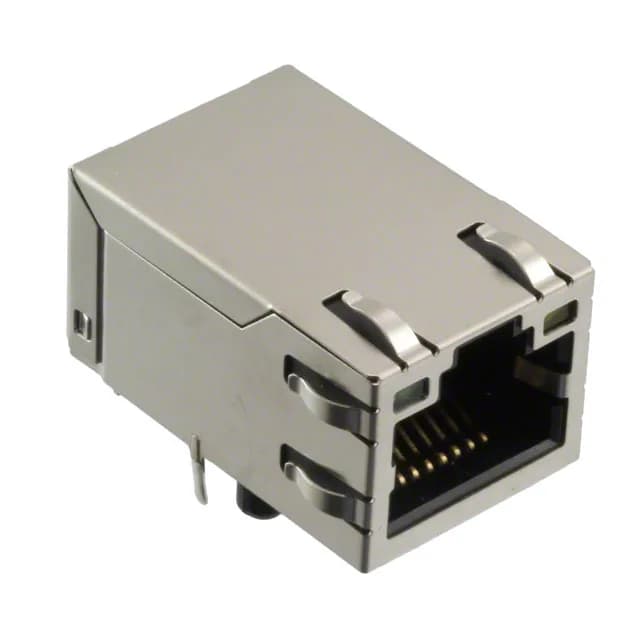

0480251190 RJ45 Jack, 48025 Series, Shielded, THT, 1 Port

MPN0480251190
Active

RJ45 jack, 48025 series, order code 0480251190, 1 port, single row, 4 cores per jack, 90° right-angle orientation, through-hole solder termination, gold 50.0µin (1.27µm) contact finish, shielded with EMI finger, green-yellow LED, tray packaging.

$8.8800Ref. price · indicative, final on quote
Molex 0480251190 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

0480251190 key specifications
ParameterValue
Series48025
MountingThrough Hole
Connector typeRJ45
Operating temperature-40°C ~ 70°C
LED colorGreen - Yellow
Shield materialBrass
Contact materialPhosphor Bronze
Housing materialPolyamide (PA), Nylon, Glass Filled
Height above board0.524\" (13.31mm)
FeaturesBoard Guide
PackageTray
ShieldingShielded, EMI Finger

All specifications

0480251190 additional specifications
ParameterValue
Orientation90° Angle (Right)
TerminationSolder
Applications10/100 Base-T, AutoMDIX
ManufacturerMolex
Tab directionUp
Contact finishGold
Rows1
Number of ports1
Contact finish thickness50.0µin (1.27µm)
Number of cores per jack4

Product details

Board-fit and signal-path details

The 0480251190 is a single-port RJ45 jack from the 48025 series, oriented 90° right-angle for through-hole solder termination. The shielded shell carries an EMI finger and a board guide; the green-yellow LED indicates link status for 10/100 Base-T with AutoMDIX.

Shielding and LED integration
