Molex 0513382674

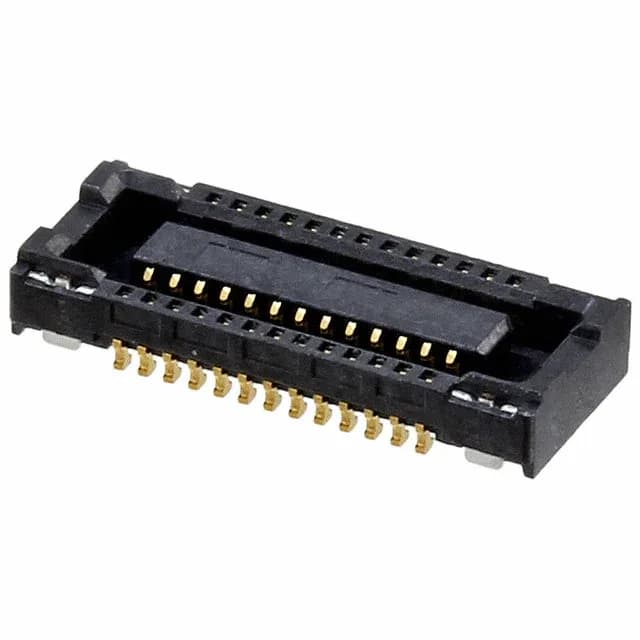

Molex SlimStack 0513382674, 26-Pos 0.40mm Pitch Receptacle

MPN 0513382674
Active

Molex SlimStack 51338 series receptacle, center strip contacts, 26 positions, 2 rows, 0.016" (0.40mm) pitch, surface mount, gold plating 8.00µin, 1.35mm height above board, solder retention.

$1.5817 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
RoHSROHS3 Compliant
IncotermsDAP / DDP Available
SeriesSlimStack 51338
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

0513382674 specifications
ParameterValue
SeriesSlimStack 51338
MountingSurface Mount
Connector typeReceptacle, Center Strip Contacts
Height above board0.053\" (1.35mm)
Mated stacking heights1.5mm
Pitch0.016\" (0.40mm)
PackageTape & Reel (TR) Cut Tape (CT)
FeaturesSolder Retention
Contact finishGold
Rows2
Positions26
Contact finish thickness8.00µin (0.203µm)

Product details

The mated stack height sits at 1.35mm above the board, which decides the z-height budget between parallel boards in compact devices like smartphones, wearables, or portable instrumentation.

The 1.35mm mated stack height is fixed — there is no adjustable height option, so the gap between the two PCBs is non-negotiable.
