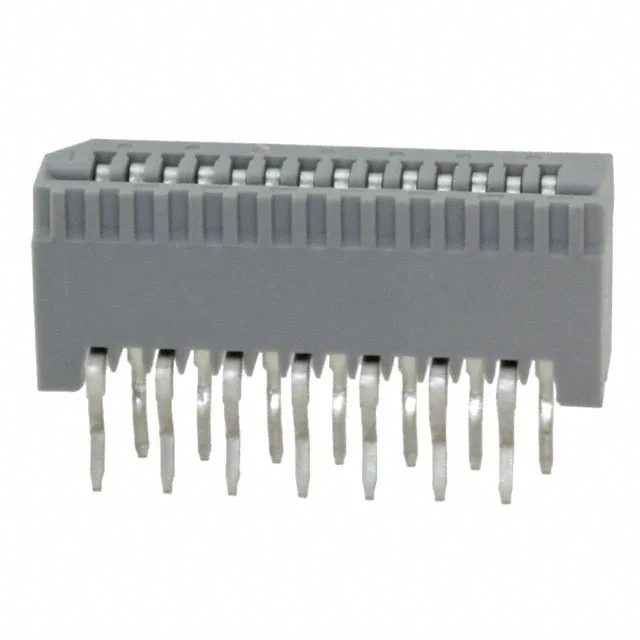

Molex 52045 FFC, FPC connector, order code 0520451445, 14 positions, 0.049" (1.25mm) pitch, 1 A, 200 V, tin-plated phosphor bronze contacts, through-hole kinked pin termination, vertical 1-sided contact.
| Parameter | Value |
|---|---|
| Series | 52045 |
| Mounting | Through Hole |
| Cable end type | Straight |
| Flat flex type | FFC, FPC |
| Connector (Contact type) | Contacts, Vertical - 1 Sided |
| Voltage rating | 200V |
| Current rating | 1A |
| Operating temperature | -40°C ~ 85°C |
| Housing color | Gray |
| Contact material | Phosphor Bronze |
| Housing material | Polybutylene Terephthalate (PBT), Polyester |
| Height above board | 0.315\" (8.00mm) |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Pitch | 0.049\" (1.25mm) |
| Package | Tray |
| Termination | Kinked Pin |
| Manufacturer | Molex |
| Contact finish | Tin |
| FFC, FCB thickness | 0.30mm |
| Positions | 14 |
| Contact finish thickness | 35.4µin (0.90µm) |
The 0520451445 is the 14-circuit member of Molex's 52045 FFC/FPC connector line, accepting 0.30 mm thick flat flex cable with vertical 1-sided contacts. Tin-plated phosphor bronze contacts rated 1 A at 200 V, through-hole kinked pin termination, housing in gray PBT/Polyester rated UL94 V-0.
The 0520451445 has a pitch of 0.049" (1.25mm).
