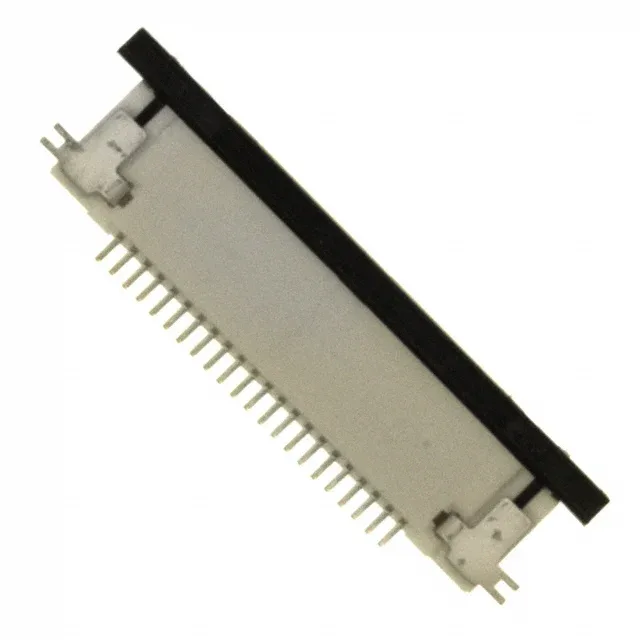

Molex Easy-On 52435 0524352272 FFC/FPC Connector, 22 Pos

MPN0524352272
Active

Molex Easy-On 52435 FFC/FPC connector, order code 0524352272, 22 positions, 0.50 mm pitch, top contact, ZIF slide lock, 0.5 A, 50 V, tin bismuth-plated contacts, surface-mount right-angle, solder termination.

$2.0000Ref. price · indicative, final on quote
0524352272 datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

0524352272 Technical Specifications
ParameterValue
SeriesEasy-On 52435
Mounting typeSurface Mount, Right Angle
Cable end typeStraight, Tapered
Flat flex typeFFC, FPC
Connector (Contact type)Contacts, Top
Voltage rating50V
Current rating0.5A
Operating temperature-40°C ~ 85°C
Contact materialPhosphor Bronze
Housing materialPolyamide (PA46), Nylon 4/6
Actuator materialPolyphenylene Sulfide (PPS)
Height above board0.079\" (2.00mm)
Material flammability ratingUL94 V-0
Pitch0.020\" (0.50mm)
PackageTape & Reel (TR) Cut Tape (CT)
FeaturesSolder Retention, Zero Insertion Force (ZIF)
TerminationSolder
Mating cycles20
Contact finishTin Bismuth
Locking featureSlide Lock
FFC, FCB thickness0.30mm
Positions22
Contact finish thickness39.4µin (1.00µm)

Product details

Contact side and ZIF actuation

The 0524352272 is the 22-position member of Molex's Easy-On 52435 FFC/FPC connector line, with a 0.50 mm pitch and top-contact configuration. It uses a ZIF slide lock actuator and accepts 0.30 mm thick FFC or FPC cable. The tin bismuth contact finish is rated for 20 mating cycles.

Cable thickness and orientation fit

The 0.30 mm cable thickness spec matches the actuator gap — a thicker flex prevents full insertion and risks lifting the contact beams. Top-contact orientation means the cable's conductive pads face upward when the connector is viewed from above; a flipped cable shorts the wrong row. The slide lock secures the cable without requiring insertion force on the contacts, preserving the 20-cycle durability rating across repeated reconnects.
